Fezzari Delano Peak Comp Eagle GA Link High 2021

MTB Trail
Groupset
SRAM NX Eagle
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
135mm

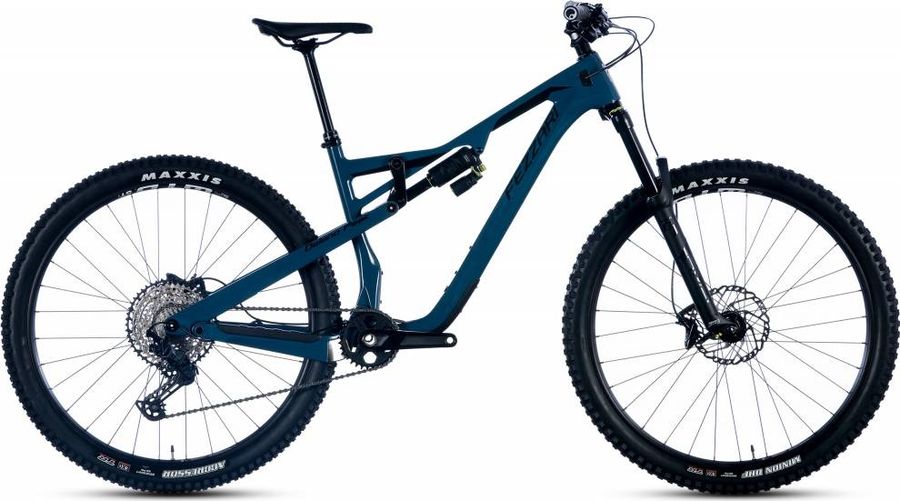

Fezzari Delano Peak Comp Eagle GA Link High 2021

About the Fezzari Delano Peak Comp Eagle GA Link High 2021

The Fezzari Delano Peak Comp Eagle GA Link High 2021 is a Full suspension Trail Mountain Bike. Equipped with a SRAM NX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Fezzari Delano Peak Comp Eagle GA Link High 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
Available Separately
Components
Steam
Fezzari FRD Charger35, CNC 6061-T6 Alloy, 35mm clamp
Saddle
Ergon SM Stealth
Headset
Cane Creek 40, ZS44/28.6 ZS56/40
Seatpost
X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout)
Handlebar
Fezzari FRD Charger35, alloy, 35mm clamp, 800mm wide, 15mm riser, 9 degree backsweep,5 degree upsweep
Brake lever
SRAM G2 R
Brakes
SRAM G2 R Hydraulic 393 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-G2-R-A1
Name
G2 R
Orientation
Front, Rear
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
393
Drivetrain
Crankset
SRAM NX Eagle Dub, 3mm offset for 148 Boost chainline
Shifter
SRAM NX Eagle, 12 speed
Bottom bracket
SRAM Dub 73 mm English Thread
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Fezzari ST135 CleanCast Carbon TetraLink Full Suspension, 135mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
Rear suspension
DVO Topaz T3
Front suspension
DVO Diamond D1
Wheels
Rims
WTB STP i29 TCS 29", 32 hole, disc specific, tubeless ready
Tires
Front: Maxxis Minion 29x2.5" 60 TPI, EXO, Tubeless Ready, Rear: Maxxis Aggressor 29x2.5" 60 TPI, EXO, Tubeless Ready
Spokes
15G Stainless black, brass nipples
Rear hub
Front: Bear Pawls MTB Disc, 15x110 Rear: Bear Pawls MTB Disc, 12x148 Microspline Freehub
Front hub
Front: Bear Pawls MTB Disc, 15x110 Rear: Bear Pawls MTB Disc, 12x148 Microspline Freehub

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
420,0
445,0
460,0
b
Seat tube angle
77,9º
77,9º
77,9º
77,9º
c
Top tube length
560,0
593,0
612,9
637,0
d
Head tube length
95,0
95,0
115,0
130,0
e
Head tube angle
65,4º
65,4º
65,4º
65,4º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
130,0
129,0
129,0
129,0
h
Wheelbase
1175,478
1208,4
1232,7
1260,1
i
Chainstay length
433,0
433,0
433,0
433,0
j
Bottom bracket drop
22,8
22,8
22,8
22,8
k
Stack height
603,5
603,5
621,8
635,5
l
Reach
435,6
467,4
483,3
504,8
m
Standover height
734,0
741,0
751,0
763,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
743,0
776,0
801,0
828,0
