Fezzari Delano Peak Comp GA Link Low 2021

MTB Trail
Groupset
Shimano SLX
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
135mm

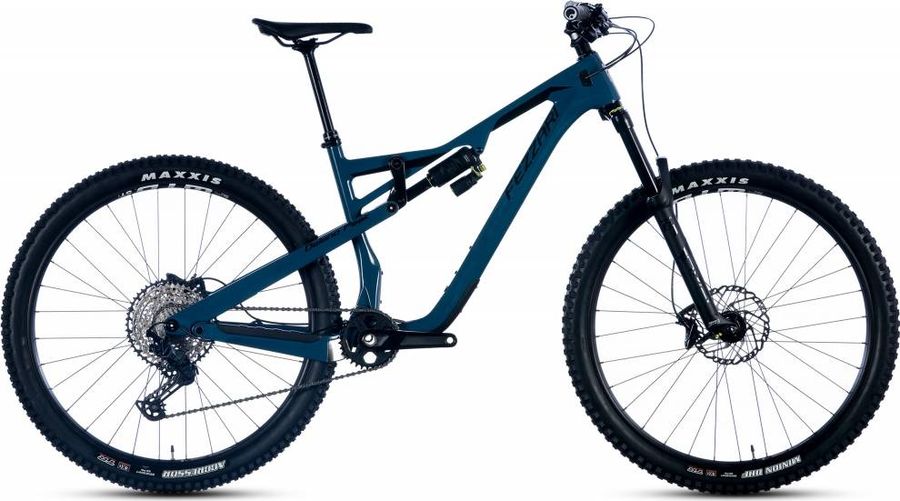

Fezzari Delano Peak Comp GA Link Low 2021

About the Fezzari Delano Peak Comp GA Link Low 2021

The Fezzari Delano Peak Comp GA Link Low 2021 is a Full suspension Trail Mountain Bike. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Fezzari Delano Peak Comp GA Link Low 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
Available Separately
Components
Steam
Fezzari FRD Charger35, CNC 6061-T6 Alloy, 35mm clamp
Saddle
Ergon SM Stealth
Headset
Cane Creek 40, ZS44/28.6 ZS56/40
Seatpost
X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout)
Handlebar
Fezzari FRD Charger35, alloy, 35mm clamp, 800mm wide, 15mm riser, 9 degree backsweep,5 degree upsweep
Brake lever
Shimano BL-M6100,
Brakes
Shimano Deore BR-M6100 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad standard
G03S Resin
Pad standard
J03A Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
Shimano FC-MT510
Shifter
Shimano SLX, SL-M7100, HG+ 12 Speed
Bottom bracket
Shimano English Thread
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Fezzari ST135 CleanCast Carbon TetraLink Full Suspension, 135mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
Rear suspension
DVO Topaz T3
Front suspension
DVO Diamond D1
Wheels
Rims
WTB STP i29 TCS 29", 32 hole, disc specific, tubeless ready
Tires
Front: Maxxis Minion 29x2.5" 60 TPI, EXO, Tubeless Ready, Rear: Maxxis Aggressor 29x2.5" 60 TPI, EXO, Tubeless Ready
Spokes
15G Stainless black, brass nipples
Rear hub
Front: Bear Pawls MTB Disc, 15x110 Rear: Bear Pawls MTB Disc, 12x148 Microspline Freehub
Front hub
Front: Bear Pawls MTB Disc, 15x110 Rear: Bear Pawls MTB Disc, 12x148 Microspline Freehub

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
420,0
445,0
460,0
b
Seat tube angle
77,5º
77,5º
77,5º
77,5º
c
Top tube length
560,0
593,0
613,0
637,0
d
Head tube length
95,0
95,0
115,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
133,0
124,0
134,0
134,0
h
Wheelbase
1176,7
1209,7
1234,0
1260,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
28,3
28,3
28,3
28,3
k
Stack height
610,0
610,0
628,0
642,0
l
Reach
430,0
455,0
480,0
500,0
m
Standover height
734,0
741,0
751,0
763,0
x
Bottom bracket height
345,0
345,0
345,0
345,0
y
Front center
744,0
777,0
801,0
827,0
