Fezzari Delano Peak Team XTR GA Link High 2022

MTB Trail
Groupset
Shimano XTR
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
135mm
Fezzari Delano Peak Team XTR GA Link High 2022

About the Fezzari Delano Peak Team XTR GA Link High 2022

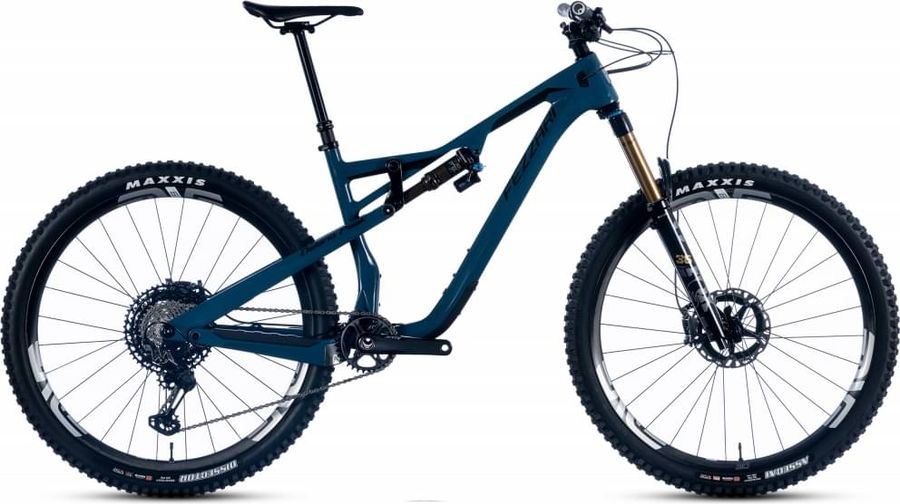

The Fezzari Delano Peak Team XTR GA Link High 2022 is a Full suspension Trail Mountain Bike. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Fezzari Delano Peak Team XTR GA Link High 2022 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
Available Separately
Components
Steam
Fezzari FRD Charger35, CNC 6061-T6 Alloy, 35mm clamp
Saddle
Ergon SM Stealth
Headset
Cane Creek 40, ZS44/28.6 ZS56/40
Seatpost
Fox Transfer Factory Internal Seatpost 31.6 125-170mm length customized through 23-point custom setup. Fox Factory seat post available with Fox suspension upgrade
Handlebar
Enve M7 Carbon, 35mm 800mm, customized sizing through 23-Point Custom Setup
Brake lever
Shimano XTR 9100
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano XTR 9120
Shifter
Shimano XTR 9100 12-spd
Bottom bracket
Shimano XTR 9100 English Thread
Rear derailleur
Shimano XTR RD-M9100-GS 237 g GS 12s
Average weight (g)
237
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
45T
Lower pulley min
45T
Model
RD-M9100-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
35T
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Frameset
Frame
Fezzari ST135 CleanCast Carbon TetraLink Full Suspension, 135mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
Enve M630 29er
Tires
Front: Maxxis Minion DHF 29x2.5" 60 TPI, EXO, Tubeless Ready, Rear: Maxxis Aggressor 29x2.5" 60 TPI, EXO, Tubeless Ready
Spokes
Sapim Race
Rear hub
Industry9 Hydra, 110x15/148x12, MicroSpline driver, Centerlock
Front hub
Industry9 Hydra, 110x15/148x12, MicroSpline driver, Centerlock

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
420,0
445,0
460,0
b
Seat tube angle
77,9º
77,9º
77,9º
77,9º
c
Top tube length
560,0
593,0
612,9
637,0
d
Head tube length
95,0
95,0
115,0
130,0
e
Head tube angle
65,4º
65,4º
65,4º
65,4º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
130,0
129,0
129,0
129,0
h
Wheelbase
1175,478
1208,4
1232,7
1260,1
i
Chainstay length
433,0
433,0
433,0
433,0
j
Bottom bracket drop
22,8
22,8
22,8
22,8
k
Stack height
603,5
603,5
621,8
635,5
l
Reach
435,6
467,4
483,3
504,8
m
Standover height
734,0
741,0
751,0
763,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
743,0
776,0
801,0
828,0
