Groupset
SRAM SX Eagle
Frame material
Carbon
Wheel size
26"
Suspension type
Hardtail

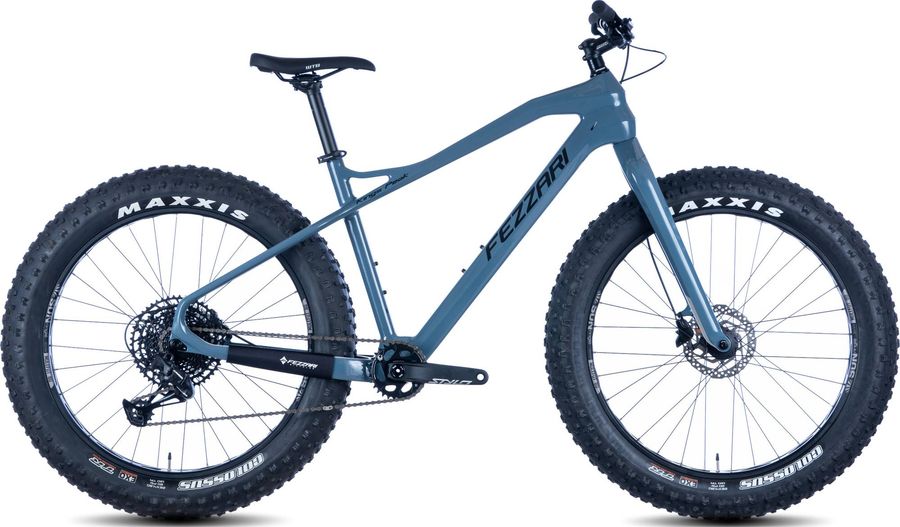

About the Fezzari Kings Peak 2021
The Fezzari Kings Peak 2021 is a Hardtail Fatbike Mountain Bike with a carbon frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, hydraulic disc brakes, and tapered head tube.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Pedals
|
Available Separately
|
|---|
|
Steam
|
Fezzari Alloy, 31.8mm (Size varies with 23-point custom setup)
|
|---|---|
|
Saddle
|
WTB Volt
|
|
Headset
|
FSA integrated sealed cartridge bearing, tapered, No. 42ACB
|
|
Seatpost
|
Fezzari Racing Design XrT Dual Bolt alloy, 31.6 Diameter, Dropper seatpost available after adding bike to cart
|
|
Handlebar
|
Fezzari Racing Design Alloy Flat Bar, 31.8mm x 780 mm (customized sizing through 23-Point Custom Setup)
|
|
Brake lever
|
Shimano BR-MT200 Hydraulic Disc
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
SRAM Stylo 6K Eagle DUB, for Fat Bike
|
|---|---|
|
Shifter
|
SRAM SX Eagle, 1x12
|
|
Bottom bracket
|
SRAM DUB BSA 100
|
|
Chain
|
SRAM SX Eagle
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Cassette
|
SRAM SX PG1210
|
|
Frame
|
Fezzari Racing Design Fat King Carbon V2, full carbon construction, 197x12mm rear axle, 100mm english thread BB, tapered headtube, internal cable routing
|
|---|---|
|
Front suspension
|
Fezzari Fat King Carbon
|
|
Rims
|
Sun Ringle Mulefut SL 80mm, 32 hole
|
|---|---|
|
Tires
|
Maxxis Colossus, 4.8, EXO protection, Tubeless Ready, 120 Tpi
|
|
Spokes
|
15g stainless black, brass nipples
|
|
Rear hub
|
Front: Bear Pawls Alloy 15x150mm, Sealed Cartridge Bearing, 6 bolt disc Rear: Bear Pawls 12x197mm, Sealed Cartridge Bearings
|
|
Front hub
|
Front: Bear Pawls Alloy 15x150mm, Sealed Cartridge Bearing, 6 bolt disc Rear: Bear Pawls 12x197mm, Sealed Cartridge Bearings
|
Geometry
| Size | SM/MD | MD/LG | XL |
|---|---|---|---|
|
a
Seat tube length
|
432,0
|
483,0
|
521,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
598,0
|
618,0
|
648,0
|
|
d
Head tube length
|
-
|
-
|
-
|
|
e
Head tube angle
|
69,8º
|
69,8º
|
69,8º
|
|
f
Rake
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
|
h
Wheelbase
|
1123,9
|
1144,0
|
1175,0
|
|
i
Chainstay length
|
466,0
|
466,0
|
466,0
|
|
j
Bottom bracket drop
|
18,0
|
18,0
|
18,0
|
|
k
Stack height
|
609,3
|
623,4
|
632,8
|
|
l
Reach
|
411,32
|
427,0
|
454,0
|
|
m
Standover height
|
697,0
|
735,0
|
747,0
|
|
x
Bottom bracket height
|
325,0
|
325,0
|
325,0
|
|
y
Front center
|
-
|
-
|
-
|
