Fezzari Kings Peak Elite 2020

MTB Fatbike
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
26"
Suspension type
Hardtail

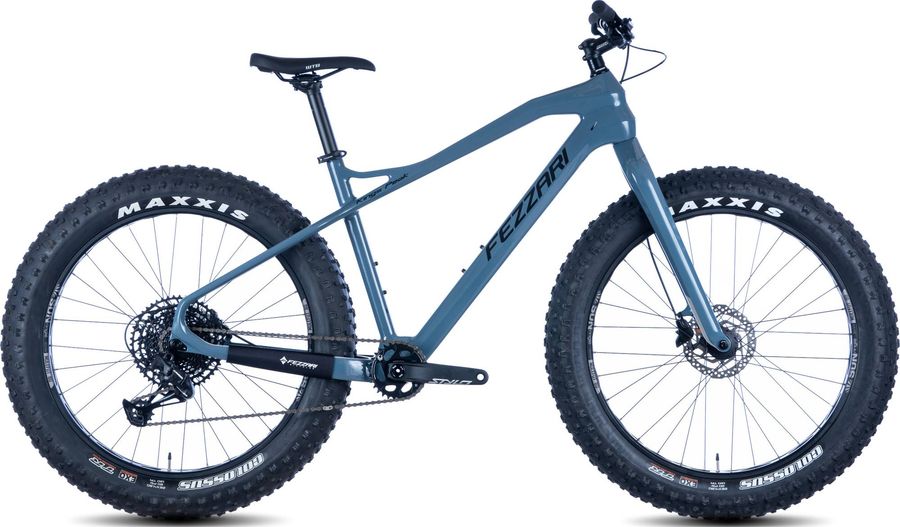

Fezzari Kings Peak Elite 2020

About the Fezzari Kings Peak Elite 2020

The Fezzari Kings Peak Elite 2020 is a Hardtail Fatbike Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, hydraulic disc brakes, and tapered head tube.

Features

The Fezzari Kings Peak Elite 2020 has 3 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Pedals
Available Separately
Components
Steam
Dimension Trail, Alloy, 35mm clamp
Saddle
Ergon SMC
Headset
FSA integrated sealed cartridge bearing, tapered, No. 42ACB
Seatpost
Fezzari carbon Dual Bolt, 31.6
Handlebar
Protaper Alloy, 25mm rise, up to 810mm rise
Brake lever
TRP Slate T4
Brakes
TRP Slate T4
Drivetrain
Crankset
SRAM GX Eagle DUB, for Fat Bike
Shifter
SRAM GX Eagle, 1x12
Bottom bracket
SRAM DUB BSA 100
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 GX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Fezzari Racing Design Fat King Carbon V2, full carbon construction, 197x12mm rear axle, 100mm english thread BB, tapered headtube, internal cable routing
Front suspension
Fezzari Fat King Carbon
Wheels
Rims
Sun Ringle Mulefut SL 80mm, 32 hole
Tires
Schwalbe Jumbo Jim Snakeskin Tubeless 26x4.8
Spokes
Wheelsmith DB14
Rear hub
SUNringlé SRC 197x12, 150x15
Front hub
SUNringlé SRC 197x12, 150x15

Geometry

Size SM/MD MD/LG XL
a
Seat tube length
432,0
483,0
521,0
b
Seat tube angle
73,0º
73,0º
73,0º
c
Top tube length
598,0
618,0
648,0
d
Head tube length
-
-
-
e
Head tube angle
69,8º
69,8º
69,8º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1123,9
1144,0
1175,0
i
Chainstay length
466,0
466,0
466,0
j
Bottom bracket drop
18,0
18,0
18,0
k
Stack height
609,3
623,4
632,8
l
Reach
411,32
427,0
454,0
m
Standover height
697,0
735,0
747,0
x
Bottom bracket height
325,0
325,0
325,0
y
Front center
-
-
-
