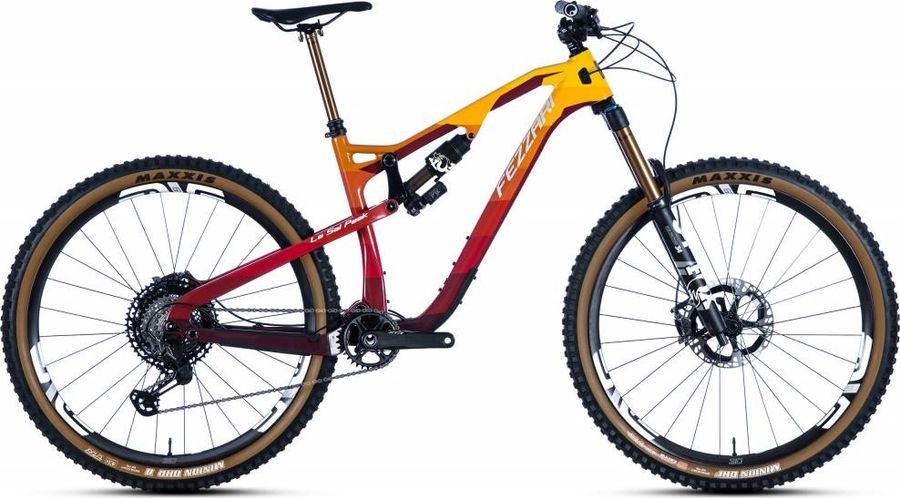

Fezzari La Sal Peak Team - City Edition - XX1 AXS 29 2019

MTB Enduro
Groupset
SRAM XX1 Eagle AXS
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
150mm
Fezzari La Sal Peak Team - City Edition - XX1 AXS 29 2019

About the Fezzari La Sal Peak Team - City Edition - XX1 AXS 29 2019

The Fezzari La Sal Peak Team - City Edition - XX1 AXS 29 2019 is a Full suspension Enduro Mountain Bike. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Fezzari La Sal Peak Team - City Edition - XX1 AXS 29 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
Available Separately
Components
Steam
Enve M7 Carbon
Saddle
Ergon SM Pro Ti
Headset
FSA No.57, integrated
Seatpost
RockShox Reverb AXS Wireless
Handlebar
Enve M7 Carbon, 35mm diameter 800mm width customized sizing through 23-Point Custom Setup
Brake lever
SRAM Code RSC with reach adjust, Swing-link, and pad contact adjust
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM XX1 Eagle AXS Carbon DUB SL, 3mm offset for 148 Boost chainline
Shifter
SRAM XX1 Eagle AXS, 12 spd, Electronic Wireless
Bottom bracket
SRAM DUB English Thread
Front derailleur
N/A - MRP SXG Chain guide Upgrade Available at Checkout
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Fezzari ST15 CleanCast Carbon TetraLink Full Suspension, 150mm travel. City Edition Paint and Graphics. ISCG-05 mounts, Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. FrameDefense Tech derailleur hanger. Max
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 36 Float Factory
Wheels
Rims
ENVE M630 29er - Custom Decals ENVE M730 Option Available at Checkout
Tires
Maxxis Minion DHF 29x2.5 Skinwall
Spokes
Sapim CX Ray
Rear hub
Industry 9 Hydra
Front hub
Industry 9 Hydra

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
420,0
460,0
495,0
b
Seat tube angle
78,0º
78,0º
78,0º
78,0º
c
Top tube length
538,0
563,0
593,0
622,0
d
Head tube length
95,0
95,0
115,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
128,0
128,0
124,0
128,0
h
Wheelbase
1169,6
1194,6
1232,3
1259,4
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
k
Stack height
607,5
607,5
625,6
639,2
l
Reach
420,0
445,0
470,0
495,0
m
Standover height
785,0
790,0
795,0
798,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
736,0
761,0
799,0
826,0
