Fezzari Lone Peak 2020
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

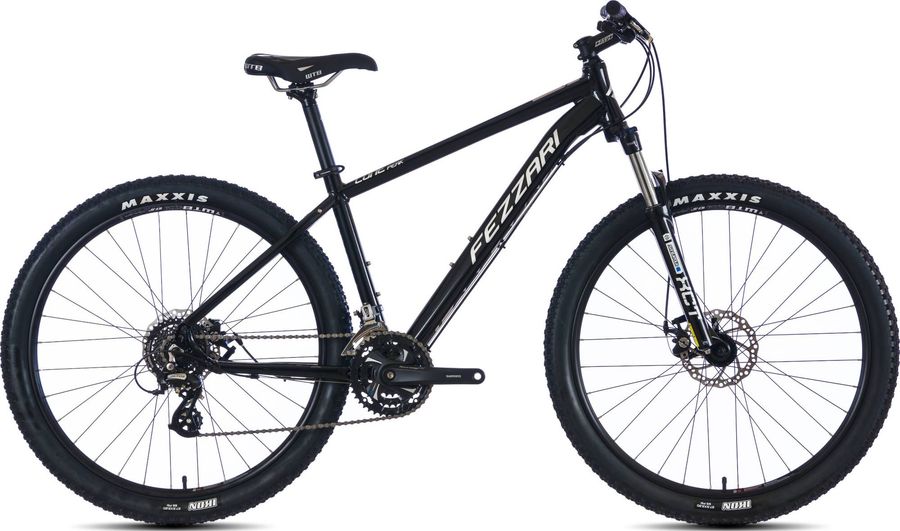

About the Fezzari Lone Peak 2020
The Fezzari Lone Peak 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 24 gears (3x8). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Pedals
|
Wellgo Ultra Narrow, CNC spindle, Flat with Ultra-Grip Pattern
|
|---|
|
Steam
|
Fezzari 31.8 Aluminum 4-bolt, hollow face plate, anodized black. Sizes and angle vary depending on custom fit.
|
|---|---|
|
Saddle
|
WTB Speed V Comp with high padding
|
|
Headset
|
Fezzari Design Aheadset, Oversized Bearings
|
|
Seatpost
|
Alloy, blast black, 31.6 x 350-400 (based on custom setup), Dropper seatpost available after adding bike to cart
|
|
Handlebar
|
Fezzari XC mid-rise bar, 30mm rise, 31.8mm diameter 640-670mm width, shot-peened anodized 6061 alloy, black
|
|
Brake lever
|
Tektro Alloy
|
|
Brakes
|
Tektro HD-M280
|
|
Crankset
|
Shimano Tourney, Alloy arms
|
|---|---|
|
Shifter
|
Shimano Altus M370, 3x8 with optical gear display
|
|
Bottom bracket
|
Shimano Square Taper, 122.5x68mm
|
|
Front derailleur
|
Shimano Altus M313 Dual pull for 3x8
|
|
Rear derailleur
|
Shimano Altus RD-M310
Smart
8/7s
|
|
|
|
|
Chain
|
KMC 8v
|
|
Cassette
|
Shimano CS-HG31-8
HG
|
|
11-32T 11-34T |
|
|
Frame
|
Fezzari Racing Design F2AH Alloy frame, 100mm travel, replaceable derailleur hanger, water bottle bosses
|
|---|---|
|
Front suspension
|
SR Suntour XCT HLO
|
|
Rims
|
WTB SX19 27.5, 32 hole
|
|---|---|
|
Tires
|
Maxxis Ikon 27.5 x 2.2, 60 TPI
|
|
Spokes
|
1.8mm (15g) black stainless, brass nipples
|
|
Rear hub
|
Alloy disk, 32 hole, QR
|
|
Front hub
|
Alloy disk, 32 hole, QR
|
Geometry
| Size | XL | LG | SM | MD |
|---|---|---|---|---|
|
a
Seat tube length
|
533,0
|
483,0
|
381,0
|
432,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
628,0
|
603,0
|
573,0
|
588,0
|
|
d
Head tube length
|
130,0
|
130,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
71,0º
|
71,0º
|
71,0º
|
71,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1114,1
|
1088,7
|
1057,7
|
1073,2
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
53,0
|
53,0
|
53,0
|
53,0
|
|
k
Stack height
|
-
|
-
|
-
|
-
|
|
l
Reach
|
-
|
-
|
-
|
-
|
|
m
Standover height
|
785,0
|
755,0
|
684,0
|
722,0
|
|
x
Bottom bracket height
|
302,0
|
302,0
|
302,0
|
302,0
|
|
y
Front center
|
691,0
|
666,0
|
635,0
|
651,0
|
