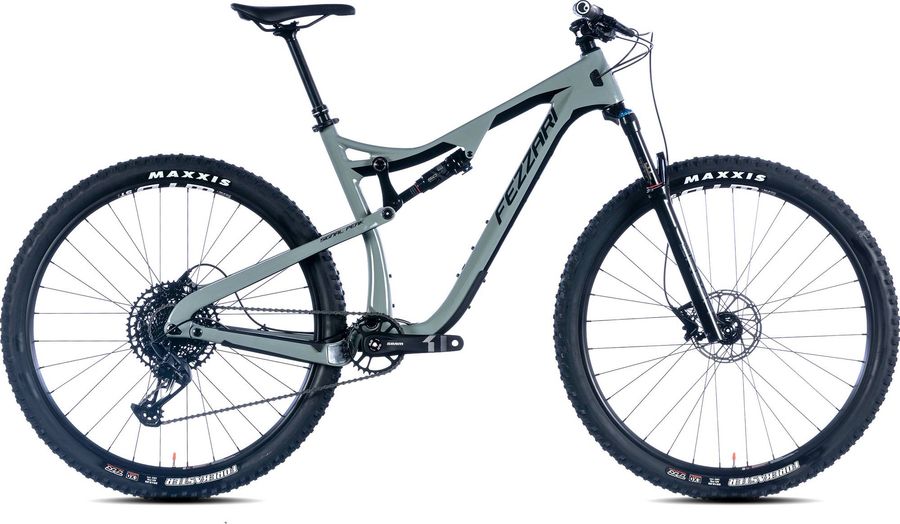

Fezzari Signal Peak Comp 2021

MTB Cross Country

Groupset

SRAM GX Eagle

Wheel size

29"

Suspension type

Full suspension

Front travel

120mm

Rear travel

115mm

About the Fezzari Signal Peak Comp 2021

The Fezzari Signal Peak Comp 2021 is a Full suspension Cross Country Mountain Bike. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Fezzari Signal Peak Comp 2021 has 7 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

E-THRU AXLE More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Pedals	Available Separately

Components
Steam	New CNC35 stem
Saddle	Ergon SM Stealth Mountain
Headset	Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
Seatpost	X-Fusion Manic Dropper- customized sizing through 23-Point Custom Setup
Handlebar	New alloy Fezzari team bar- customized sizing through 23-Point Custom Setup
Brake lever	SRAM Level T
Brakes	SRAM Level T Hydraulic 410 g
Application MTB Blade material Aluminum - Stamped Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Gloss Black Model DB-LVL-T-A1 Name Level T Orientation Front, L/F, L/R, R/F, R/R, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic Weight based on Direct Mount, 800mm hose, 160mm CL Rotor (TARGET) Weight 410

Drivetrain
Crankset	SRAM X1 1000 Eagle DUB S/M : 170mm, L/XL : 175mm
Shifter	SRAM GX Eagle Trigger, 1x12
Bottom bracket	SRAM Dub English Thread
Chain	SRAM NX Eagle 252 g
Chain connector PowerLock Chain length links 126 links Color inner link Grey Color outer link Grey Compat speed 12s-Eagle Inner link finish Polished Model CN-EAGL-NX-A1 Name NX Eagle Chain Outer link finish Polished Pin variant Solid Pin Weight based on 114 links Weight 252
Rear derailleur	SRAM GX Eagle 12s
Cable pull ratio X-actuation Cage Long Cage material Aluminum Color Lunar Max tooth 52 Model RD-GX-1-B2 Name GX Eagle Rear Derailleur Pulley bearings material Steel Speed 12s
Cassette	SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete Black Cog sizes 11-50t:11,13,15,17,19,22,25,28,32,36,42,50 Gearing 11-50t Model CS-PG-1230-A1 Name PG-1230 Eagle Cassette Speed 12s Technology cassete PG Weight 615

Frameset
Frame	Fezzari ST12 CleanCast Carbon TetraLink Full Suspension, 115mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. FrameDefense Tech derailleur hanger. 2 Flush-mount bottle cages (all frame sizes)
Front suspension	RockShox Reba RL Solo Air 1620 g
Color Diffusion Black, Gloss Black, Gloss White Damper type n/a, RL fork offset 40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29") Maximum rotor size 200mm Minimum rotor size 160mm Model FS-REBA-RL-A6 Name Reba RL Spring Solo Air Travel (mm) 100mm, 120mm, 80mm Upper tube type 32mm straight wall aluminum Weight based on 15x100 Maxle Stealth, Tapered steerer, 120mm travel Weight 1620 Wheel size 26", 27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension	RockShox SIDluxe Select+ 236 g
Body eyelet No Bushing, No Bushing - 90 Deg Rotation, Standard Compression tune H, L, L1, LC, M Damper type RL, RLR Eye to eye stroke 145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50 Lockout force 380, 430 Model RS-SIDL-SELP-A1 Name SIDLuxe Select+ Rebound tune H, L, M Shaft eyelet No Bushing, Standard, Trunnion Weight based on RL 190x45 0 Tokens Weight 236

Wheels
Rims	WTB ST i25 TCS 2.0 29" disc specific, tubeless ready
Tires	Maxxis Forekaster 29x2.35, 120 TPI,EXO Protection, Tubeless Ready
Spokes	15G Stainless, black, with brass nipple
Rear hub	F: Bear Pawls Sealed Bearing Disc, 110x15mm thru axle, 32 hole, 6 bolt; R: Bear Pawls Sealed Bearing Disc, 148x12mm thru axle, 32 hole, 6 bolt
Front hub	F: Bear Pawls Sealed Bearing Disc, 110x15mm thru axle, 32 hole, 6 bolt; R: Bear Pawls Sealed Bearing Disc, 148x12mm thru axle, 32 hole, 6 bolt
