Fezzari Signal Peak Comp 27.5+ 2020

Women's Bike
MTB Trail
Groupset
SRAM NX Eagle
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

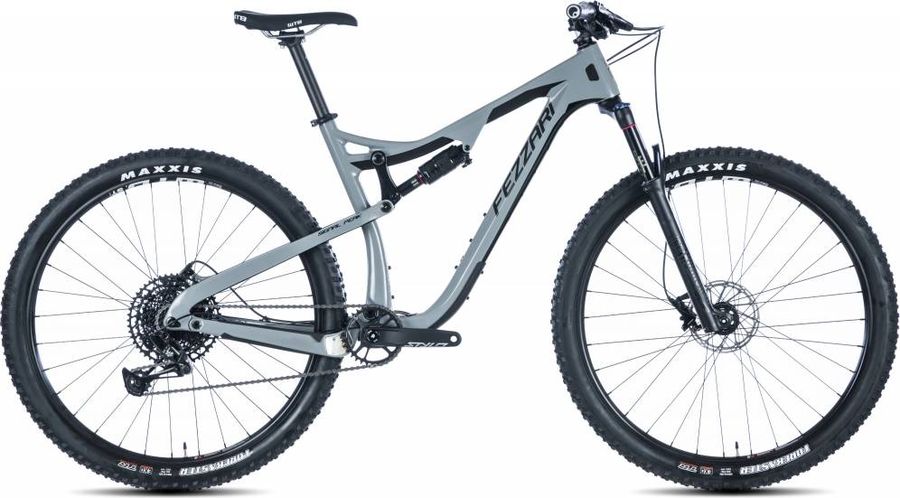

Fezzari Signal Peak Comp 27.5+ 2020

About the Fezzari Signal Peak Comp 27.5+ 2020

The Fezzari Signal Peak Comp 27.5+ 2020 is a Full suspension Trail Mountain Bike. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and e-thru axle.

Features

The Fezzari Signal Peak Comp 27.5+ 2020 has 6 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
Available Separately
Components
Steam
Fezzari 3D forged 35mm alloy,customized sizing through 23-Point Custom Setup
Saddle
WTB Volt Race; Women: WTB Koda Comp, Customized through 23-point custom setup
Headset
FSA No.57, integrated
Seatpost
Fezzari Racing Design XrT Dual Bolt UD Carbon, 31.6mm Diameter, Dropper seatpost available after adding bike to cart
Handlebar
Fezzari Racing Design Alloy, 35mm 760-780mm,customized sizing through 23-Point Custom Setup
Brake lever
SRAM Level T
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
SRAM Stylo 6k Dub, 3mm offset for 148 Boost chainline
Shifter
NEW SRAM NX Eagle 12 spd, trigger shifter
Bottom bracket
SRAM Dub English Thread
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM NX Eagle
Frameset
Frame
Fezzari ST12 CleanCast Carbon TetraLink Full Suspension, 120mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. FrameDefense Tech derailleur hanger. 2 Flush-mount bottle cages (all frame sizes)
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Monarch RT3 215 g
Body eyelet
No Bushing, Shock Block, Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 184x48, 190x51, 194x46, 197x48, 197x51, 197x54, 197x57, 200x51, 200x57, 216x63
Lockout force
219, 320, 380
Model
RS-MNR-RT3-D1
Name
Monarch RT3
Rebound tune
H, L, M
Shaft eyelet
Standard, Trek Mount
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
WTB STP i25 TCS 29", 32 hole, disc specific, tubeless ready; 27.5+ available after adding bike to cart
Tires
Maxxis Forekaster 29x2.35, 120 TPI,EXO Protection, Tubeless Ready; 27.5+ available after adding bike to cart
Spokes
15G, black stainless
Rear hub
F: Bear Pawls Sealed Bearing Disc, 110x15mm thru axle, 32 hole, 6 bolt; R: Bear Pawls Sealed Bearing Disc, 148x12mm thru axle, 32 hole, 6 bolt
Front hub
F: Bear Pawls Sealed Bearing Disc, 110x15mm thru axle, 32 hole, 6 bolt; R: Bear Pawls Sealed Bearing Disc, 148x12mm thru axle, 32 hole, 6 bolt

Geometry

Size SM MD LG XL
a
Seat tube length
403,0
429,0
480,0
517,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
594,6
611,6
630,6
649,6
d
Head tube length
105,0
110,0
120,0
130,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
86,0
86,0
86,0
86,0
h
Wheelbase
1147,6
1165,3
1185,5
1205,7
i
Chainstay length
433,0
433,0
433,0
433,0
j
Bottom bracket drop
28,0
28,0
28,0
28,0
k
Stack height
605,2
609,8
619,1
628,4
l
Reach
438,8
454,7
471,1
487,5
m
Standover height
778,8
785,4
789,5
793,8
x
Bottom bracket height
335,5
335,5
335,5
335,5
y
Front center
716,0
734,0
754,0
774,0
