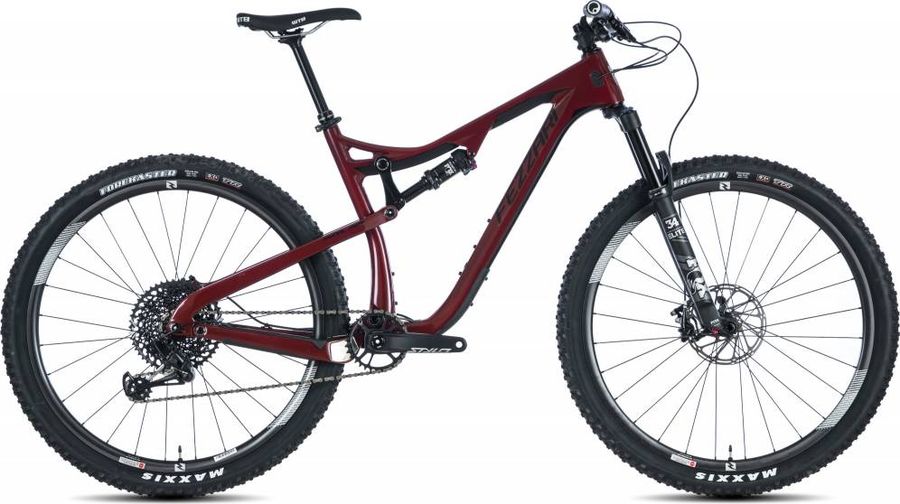

Fezzari Signal Peak Elite 29 2019
The Fezzari Signal Peak Elite 29 2019 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
SRAM GX Eagle
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm
About the Fezzari Signal Peak Elite 29 2019
The Fezzari Signal Peak Elite 29 2019 is a Full suspension Trail Mountain Bike. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Pedals
|
Available Separately
|
|---|
|
Steam
|
Raceface Ride 35mm
|
|---|---|
|
Saddle
|
WTB Volt Race, Women: WTB Koda Comp, Customized through 23-point custom setup
|
|
Headset
|
FSA No.57, integrated
|
|
Seatpost
|
X-Fusion Manic Dropper post, 125mm or 150mm travel customized through 23-point custom setup
|
|
Handlebar
|
Raceface Turbine R, 35mm clamp, 760-780mm length customized through 23-point custom setup
|
|
Brake lever
|
SRAM Level TL
|
|
Brakes
|
SRAM Level TL
Hydraulic
370 g
|
|
|
|
|
Crankset
|
SRAM Stylo 6k Dub, 3mm offset for 148 Boost chainline
|
|---|---|
|
Shifter
|
SRAM GX Eagle Trigger 12-speed
|
|
Bottom bracket
|
SRAM Dub English Thread
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Fezzari ST12 CleanCast Carbon TetraLink Full Suspension, 120mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. FrameDefense Tech derailleur hanger. 2 Flush-mount bottle cages (all frame sizes)
|
|---|---|
|
Rear suspension
|
Fox Float DPS
|
|
Front suspension
|
Fox 34 Float Performance Elite
|
|
Rims
|
Stan's Arch MK3, 29", 32 hole, disc specific, tubeless ready; 27.5+ available after adding bike to cart
|
|---|---|
|
Tires
|
Maxxis Forekaster 29x2.35, 120 TPI,EXO Protection, Tubeless Ready
|
|
Spokes
|
Black Sapim Force
|
|
Rear hub
|
Stan's Neo; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, XD driver
|
|
Front hub
|
Stan's Neo; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, XD driver
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
406,0
|
432,0
|
483,0
|
520,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
599,0
|
616,0
|
635,0
|
654,0
|
|
d
Head tube length
|
105,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
96,0
|
96,0
|
96,0
|
96,0
|
|
h
Wheelbase
|
1150,8
|
1168,5
|
1188,7
|
1208,9
|
|
i
Chainstay length
|
436,0
|
436,0
|
436,0
|
436,0
|
|
j
Bottom bracket drop
|
35,0
|
35,0
|
35,0
|
35,0
|
|
k
Stack height
|
612,2
|
616,9
|
626,2
|
635,4
|
|
l
Reach
|
436,4
|
452,3
|
468,7
|
485,1
|
|
m
Standover height
|
783,3
|
790,0
|
794,0
|
798,3
|
|
x
Bottom bracket height
|
341,0
|
341,0
|
341,0
|
341,0
|
|
y
Front center
|
717,0
|
735,0
|
755,0
|
775,0
|
