Fezzari Signal Peak Elite Race 27.5+ 2021

Women's Bike
MTB Trail
Groupset
SRAM GX Eagle
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

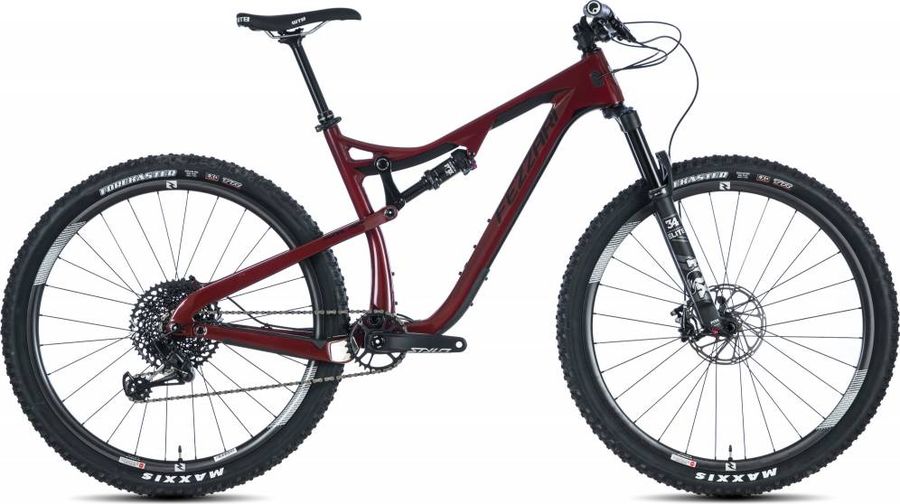

Fezzari Signal Peak Elite Race 27.5+ 2021

About the Fezzari Signal Peak Elite Race 27.5+ 2021

The Fezzari Signal Peak Elite Race 27.5+ 2021 is a Full suspension Trail Mountain Bike. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Fezzari Signal Peak Elite Race 27.5+ 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
Available Separately
Components
Steam
Raceface Ride 35mm
Saddle
WTB Volt Race, Women: WTB Koda Comp, Customized through 23-point custom setup
Headset
FSA No.57, integrated
Seatpost
X-Fusion Manic Dropper post, 125mm or 150mm travel customized through 23-point custom setup
Handlebar
Raceface Turbine R, 35mm clamp, 760-780mm length customized through 23-point custom setup
Brake lever
SRAM Level TL
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
SRAM Stylo 6k Dub, 3mm offset for 148 Boost chainline
Shifter
SRAM GX Eagle Trigger 12-speed
Bottom bracket
SRAM Dub English Thread
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Fezzari ST12 CleanCast Carbon TetraLink Full Suspension, 120mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. FrameDefense Tech derailleur hanger. 2 Flush-mount bottle cages (all frame sizes)
Rear suspension
Fox Float DPS
Front suspension
Fox 34 Float Performance Elite
Wheels
Rims
Reynold's TR 249 S Carbon, 24mm internal width; 27.5+ available after adding bike to cart
Tires
Maxxis Forekaster 29x2.35, 120 TPI,EXO Protection, Tubeless Ready
Spokes
Sapim CX Sprint
Rear hub
Reynolds TR6 hubs, Sealed bearings, 5 degree engagement, XD Driver F: 110x15 Rear: 148x12, Centerlock
Front hub
Reynolds TR6 hubs, Sealed bearings, 5 degree engagement, XD Driver F: 110x15 Rear: 148x12, Centerlock

Geometry

Size SM MD LG XL
a
Seat tube length
403,0
429,0
480,0
517,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
594,6
611,6
630,6
649,6
d
Head tube length
105,0
110,0
120,0
130,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
86,0
86,0
86,0
86,0
h
Wheelbase
1147,6
1165,3
1185,5
1205,7
i
Chainstay length
433,0
433,0
433,0
433,0
j
Bottom bracket drop
28,0
28,0
28,0
28,0
k
Stack height
605,2
609,8
619,1
628,4
l
Reach
438,8
454,7
471,1
487,5
m
Standover height
778,8
785,4
789,5
793,8
x
Bottom bracket height
335,5
335,5
335,5
335,5
y
Front center
716,0
734,0
754,0
774,0
