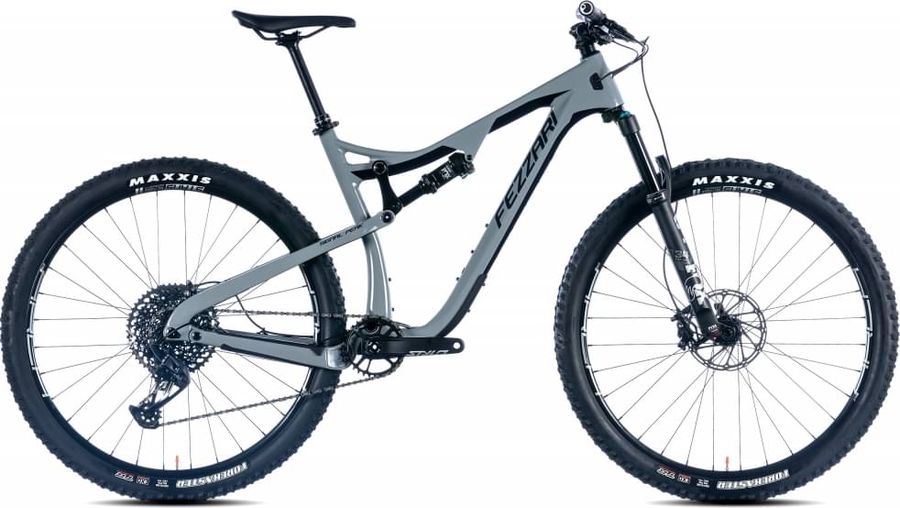

Fezzari Signal Peak Elite Race 29 2022
Groupset
SRAM GX Eagle
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
115mm
About the Fezzari Signal Peak Elite Race 29 2022
The Fezzari Signal Peak Elite Race 29 2022 is a Full suspension Cross Country Mountain Bike. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
New CNC35 stem
|
|---|---|
|
Saddle
|
Selle Italia Model X
|
|
Headset
|
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
|
|
Seatpost
|
X-Fusion Manic Dropper- customized sizing through 23-Point Custom Setup
|
|
Handlebar
|
New alloy Fezzari team bar-customized sizing through 23-Point Custom Setup
|
|
Brake lever
|
SRAM Level TLM
|
|
Brakes
|
SRAM Level TLM
Hydraulic
356 g
|
|
|
|
|
Crankset
|
SRAM Stylo 6k Dub, 3mm offset for 148 Boost chainline
|
|---|---|
|
Shifter
|
SRAM GX Eagle Trigger 12-speed
|
|
Bottom bracket
|
SRAM Dub English Thread
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Fezzari ST12 CleanCast Carbon TetraLink Full Suspension, 115mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. FrameDefense Tech derailleur hanger. 2 Flush-mount bottle cages (all frame sizes)
|
|---|---|
|
Rear suspension
|
Fox Float DPS
|
|
Front suspension
|
Fox 34 Float Performance Elite
|
|
Rims
|
Reynold's TR 249 S Carbon, 24mm internal width
|
|---|---|
|
Tires
|
Maxxis Forekaster 29x2.35, 120 TPI,EXO Protection, Tubeless Ready
|
|
Spokes
|
Sapim CX Sprint
|
|
Rear hub
|
Reynolds TR6 hubs, Sealed bearings, 5 degree engagement, XD Driver F: 110x15 Rear: 148x12, Centerlock
|
|
Front hub
|
Reynolds TR6 hubs, Sealed bearings, 5 degree engagement, XD Driver F: 110x15 Rear: 148x12, Centerlock
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
406,0
|
432,0
|
483,0
|
520,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
599,0
|
616,0
|
635,0
|
654,0
|
|
d
Head tube length
|
105,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
96,0
|
96,0
|
96,0
|
96,0
|
|
h
Wheelbase
|
1150,8
|
1168,5
|
1188,7
|
1208,9
|
|
i
Chainstay length
|
436,0
|
436,0
|
436,0
|
436,0
|
|
j
Bottom bracket drop
|
35,0
|
35,0
|
35,0
|
35,0
|
|
k
Stack height
|
612,2
|
616,9
|
626,2
|
635,4
|
|
l
Reach
|
436,4
|
452,3
|
468,7
|
485,1
|
|
m
Standover height
|
783,3
|
790,0
|
794,0
|
798,3
|
|
x
Bottom bracket height
|
341,0
|
341,0
|
341,0
|
341,0
|
|
y
Front center
|
717,0
|
735,0
|
755,0
|
775,0
|
