Groupset
SRAM XX1 Eagle
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

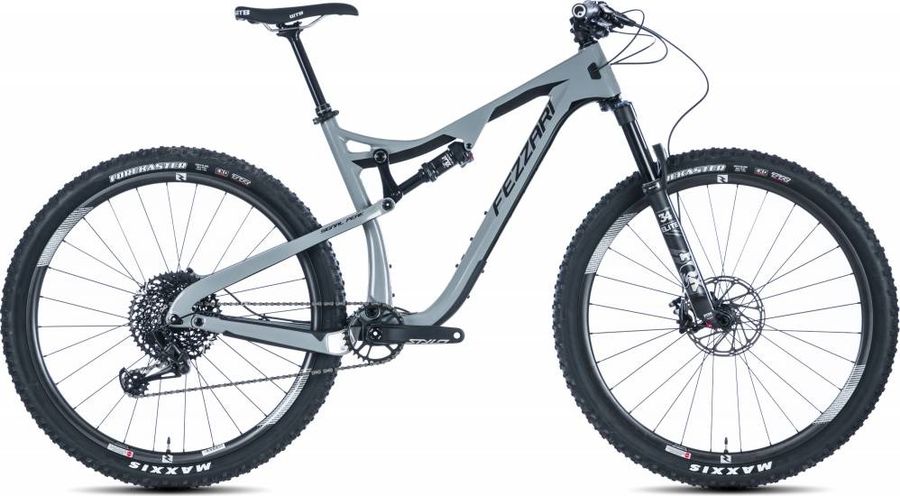

About the Fezzari Signal Peak Pro 29 2020
The Fezzari Signal Peak Pro 29 2020 is a Full suspension Trail Mountain Bike. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Pedals
|
Available Separately
|
|---|
|
Steam
|
RaceFace Turbine R 35mm,customized sizing through 23-Point Custom Setup
|
|---|---|
|
Saddle
|
Ergon SM Pro Ti
|
|
Headset
|
FSA No.57, integrated
|
|
Seatpost
|
Fox Transfer Factory Internal Seatpost 31.6 and 1x Remote
|
|
Handlebar
|
Enve M7 Carbon, 35mm 800mm, customized sizing through 23-Point Custom Setup
|
|
Brake lever
|
SRAM Level Ultimate
|
|
Brakes
|
SRAM Level Ultimate
Hydraulic
317 g
|
|
|
|
|
Crankset
|
SRAM XX1 Carbon Dub, 3mm offset for 148 Boost chainline
|
|---|---|
|
Shifter
|
SRAM XX1 Eagle, trigger shifter
|
|
Bottom bracket
|
SRAM Dub English Thread
|
|
Cassette
|
SRAM XG-1299 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM XX1 Eagle
12s
|
|
|
|
|
Chain
|
SRAM XX1 Eagle
239 g
|
|
|
|
|
Frame
|
Fezzari ST12 CleanCast Carbon TetraLink Full Suspension, 120mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. FrameDefense Tech derailleur hanger. 2 Flush-mount bottle cages (all frame sizes)
|
|---|---|
|
Front suspension
|
Fox 34 Float Factory
|
|
Rear suspension
|
Fox Float DPS Factory
|
|
Rims
|
Reynold's TR 249 S Carbon, 24mm internal width; 27.5+ and ENVE upgrade available after adding bike to cart
|
|---|---|
|
Tires
|
Maxxis Forekaster 29x2.35, 120 TPI,EXO Protection, Tubeless Ready
|
|
Spokes
|
Sapim CX Sprint
|
|
Rear hub
|
Reynolds TR6 hubs, Sealed bearings, 5 degree engagement, XD Driver F: 110x15 Rear: 148x12, Centerlock
|
|
Front hub
|
Reynolds TR6 hubs, Sealed bearings, 5 degree engagement, XD Driver F: 110x15 Rear: 148x12, Centerlock
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
406,0
|
432,0
|
483,0
|
520,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
599,0
|
616,0
|
635,0
|
654,0
|
|
d
Head tube length
|
105,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
96,0
|
96,0
|
96,0
|
96,0
|
|
h
Wheelbase
|
1150,8
|
1168,5
|
1188,7
|
1208,9
|
|
i
Chainstay length
|
436,0
|
436,0
|
436,0
|
436,0
|
|
j
Bottom bracket drop
|
35,0
|
35,0
|
35,0
|
35,0
|
|
k
Stack height
|
612,2
|
616,9
|
626,2
|
635,4
|
|
l
Reach
|
436,4
|
452,3
|
468,7
|
485,1
|
|
m
Standover height
|
783,3
|
790,0
|
794,0
|
798,3
|
|
x
Bottom bracket height
|
341,0
|
341,0
|
341,0
|
341,0
|
|
y
Front center
|
717,0
|
735,0
|
755,0
|
775,0
|
