BikeWise

Fezzari Signal Peak Team Edition 29 2021

MTB Trail
Groupset
SRAM XX1 Eagle AXS
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

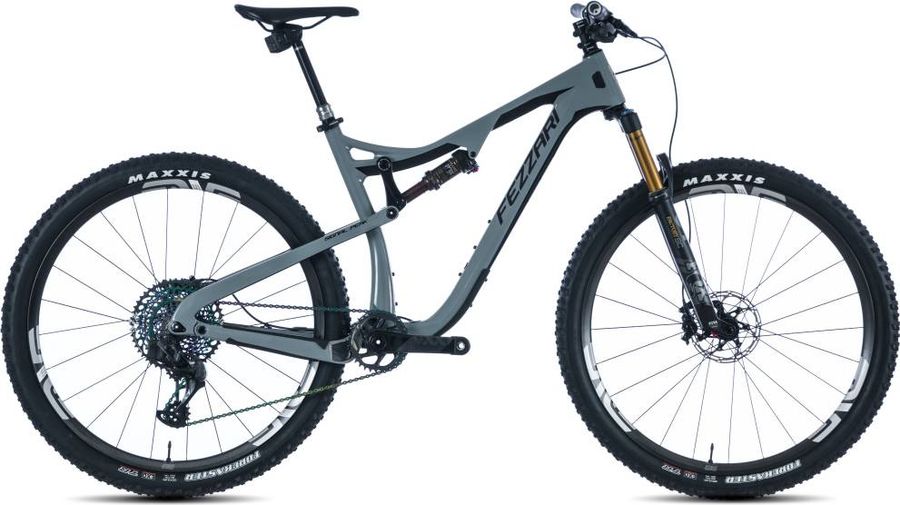

Fezzari Signal Peak Team Edition 29 2021

About the Fezzari Signal Peak Team Edition 29 2021

The Fezzari Signal Peak Team Edition 29 2021 is a Full suspension Trail Mountain Bike. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Fezzari Signal Peak Team Edition 29 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
Available Separately
Components
Steam
RaceFace Turbine R 35mm,customized sizing through 23-Point Custom Setup
Saddle
Ergon SM Pro Ti
Headset
FSA No.57, integrated
Seatpost
RockShox Reverb AXS Wireless
Handlebar
Enve M7 Carbon, 35mm diameter, 780-800m width
Brake lever
SRAM Level Ultimate
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle AXS Carbon DUB SL, 3mm offset for 148 Boost chainline
Shifter
SRAM XX1 Eagle AXS, trigger shifter
Bottom bracket
SRAM Dub English Thread
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Fezzari ST12 CleanCast Carbon TetraLink Full Suspension, 120mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. FrameDefense Tech derailleur hanger. 2 Flush-mount bottle cages (all frame sizes)
Front suspension
Fox 34 Float Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
Enve M525 OR M630 - Customize at Checkout
Tires
Maxxis Forekaster 29x2.35, 120 TPI,EXO Protection, Tubeless Ready
Spokes
Sapim CX Sprint
Rear hub
Industry 9 101 - Industry 9 Hydra Upgrade available at Checkout
Front hub
Industry 9 101 - Industry 9 Hydra Upgrade available at Checkout

Geometry

Size SM MD LG XL
a
Seat tube length
406,0
432,0
483,0
520,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
599,0
616,0
635,0
654,0
d
Head tube length
105,0
110,0
120,0
130,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
96,0
96,0
96,0
96,0
h
Wheelbase
1150,8
1168,5
1188,7
1208,9
i
Chainstay length
436,0
436,0
436,0
436,0
j
Bottom bracket drop
35,0
35,0
35,0
35,0
k
Stack height
612,2
616,9
626,2
635,4
l
Reach
436,4
452,3
468,7
485,1
m
Standover height
783,3
790,0
794,0
798,3
x
Bottom bracket height
341,0
341,0
341,0
341,0
y
Front center
717,0
735,0
755,0
775,0
