Fezzari Solitude Comp 27.5+ 2021

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

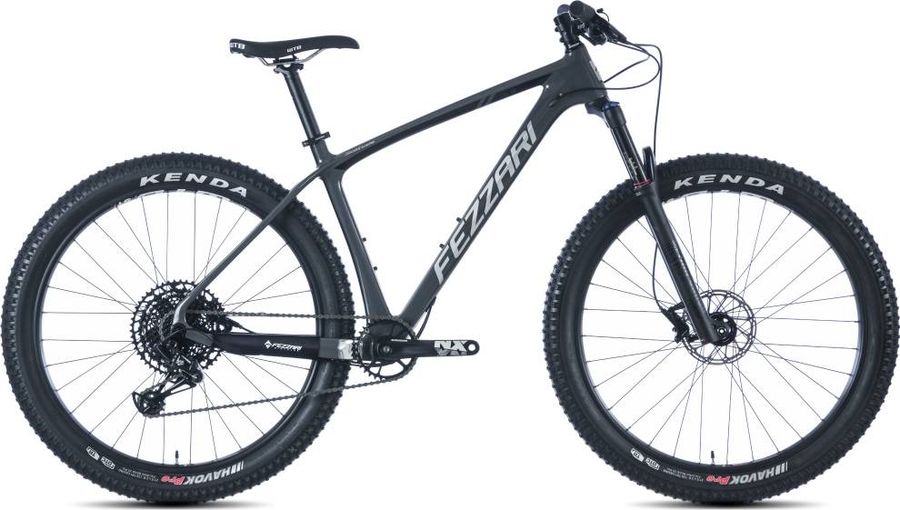

Fezzari Solitude Comp 27.5+ 2021

About the Fezzari Solitude Comp 27.5+ 2021

The Fezzari Solitude Comp 27.5+ 2021 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148.

Features

The Fezzari Solitude Comp 27.5+ 2021 has 6 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
Available Separately
Components
Steam
Fezzari 3D forged 31.8mm alloy, 7 degree, 4-bolt bar clamp (customized sizing through 23-Point Custom Setup)
Saddle
WTB Volt Race
Headset
FSA, No.42 ACB, sealed cartridge bearing
Seatpost
Fezzari Alloy, Dual Bolt Clamp, 31.6 x 350-400 (based on custom setup), Dropper seatpost available after adding bike to cart
Handlebar
Fezzari Racing Design Alloy, 31.8mm x 740mm (customized sizing through 23-Point Custom Setup), 0mm rise, 7 degree sweep
Brake lever
SRAM Level
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
SRAM NX Eagle 1x12, boost 148mm
Shifter
SRAM NX Eagle Trigger, 1x12
Bottom bracket
SRAM Power Spline
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Fezzari Racing Design MC279+ Monocoque carbon design, tapered steerer, integrated internal cable routing, oversize seat tube for lateral stiffness, English thread BB
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
WTB Scraper i35 Pinned. 27.5 for 2.8 tire, Tubeless Ready
Tires
Kenda Havok Pro 27.5x2.8, Tubeless Ready, dual tread compound, sidewall protection
Spokes
15G Stainless, black, with brass nipple
Rear hub
Front: Formula DC-711 110x15mm, 32H, 6 bolt, sealed bearing; Rear: Formula DHT 148S, 148x12mm, 32H, 6 bolt, sealed bearing
Front hub
Front: Formula DC-711 110x15mm, 32H, 6 bolt, sealed bearing; Rear: Formula DHT 148S, 148x12mm, 32H, 6 bolt, sealed bearing

Geometry

Size 16" 18" 20"
a
Seat tube length
406,0
457,2
508,0
b
Seat tube angle
70,5º
70,5º
70,5º
c
Top tube length
561,0
602,2
626,0
d
Head tube length
110,0
110,8
120,0
e
Head tube angle
68,5º
68,5º
68,5º
f
Rake
51,0
51,0
51,0
g
Trail
85,0
96,0
85,0
h
Wheelbase
1062,5
1095,0
1139,8
i
Chainstay length
431,0
431,0
431,0
j
Bottom bracket drop
51,8
51,8
51,8
k
Stack height
608,8
609,6
618,1
l
Reach
368,7
411,6
442,4
m
Standover height
704,5
755,3
806,1
x
Bottom bracket height
316,8
316,8
316,8
y
Front center
637,0
669,0
714,0
