BikeWise

Fezzari Solitude Comp 29er 2021

MTB Trail
Groupset
SRAM GX Eagle
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm

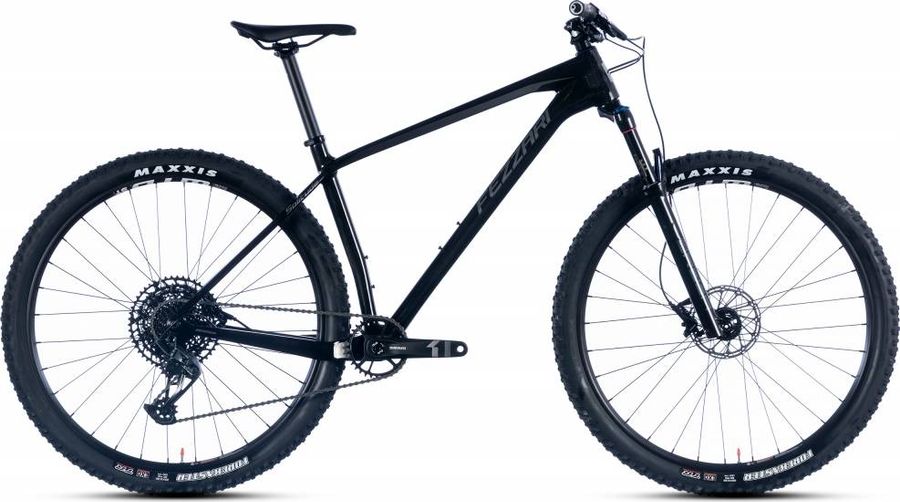

Fezzari Solitude Comp 29er 2021

About the Fezzari Solitude Comp 29er 2021

The Fezzari Solitude Comp 29er 2021 is a Hardtail Trail Mountain Bike. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and e-thru axle.

Features

The Fezzari Solitude Comp 29er 2021 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
New CNC35 stem
Saddle
Selle Italia Model X
Headset
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
Seatpost
Carbon
Handlebar
New alloy Fezzari team bar- customized sizing through 23-Point Custom Setup
Brake lever
SRAM Level T
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
SRAM X1 1000 Eagle DUB S/M : 170mm, L/XL : 175mm
Shifter
SRAM GX Eagle Trigger, 1x12
Bottom bracket
SRAM DUB BSA MTB73
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Fezzari 68HTA MonoForm construction, 100-120 mm Travel
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
WTB ST i25 TCS 2.0 29"
Tires
MAXXIS Forekaster EXO/TR 29x2.35
Spokes
15G Stainless, black, with brass nipple
Rear hub
F: Bear Pawls Sealed Bearing Disc, 110x15mm thru axle, 32 hole, 6 bolt; R: Bear Pawls Sealed Bearing Disc, 148x12mm thru axle, 32 hole, 6 bolt
Front hub
F: Bear Pawls Sealed Bearing Disc, 110x15mm thru axle, 32 hole, 6 bolt; R: Bear Pawls Sealed Bearing Disc, 148x12mm thru axle, 32 hole, 6 bolt

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
400,0
460,0
500,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
580,0
605,0
629,0
660,0
d
Head tube length
95,0
100,0
115,0
130,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
96,0
96,0
102,0
96,0
h
Wheelbase
1107,0
1134,0
1159,0
1195,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
k
Stack height
597,0
602,0
616,0
630,0
l
Reach
407,0
432,0
457,0
482,0
m
Standover height
718,0
731,0
779,0
808,0
x
Bottom bracket height
311,0
311,0
311,0
311,0
y
Front center
686,0
713,0
738,0
774,0
