Fezzari Solitude Elite 29 2021

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm

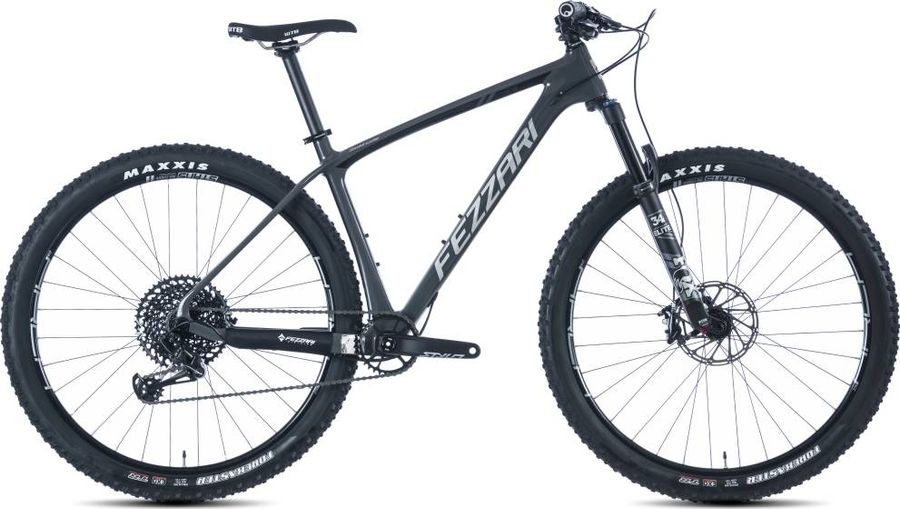

Fezzari Solitude Elite 29 2021

About the Fezzari Solitude Elite 29 2021

The Fezzari Solitude Elite 29 2021 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148.

Features

The Fezzari Solitude Elite 29 2021 has 5 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Pedals
Available Separately
Components
Steam
Fezzari Charger 35mm clamp, length customized through 23-point custom setup
Saddle
WTB Volt Race
Headset
FSA, No.42 ACB, sealed cartridge bearing
Seatpost
Fezzari Racing Design XrT Dual Bolt UD Carbon, 31.6mm Diameter, Dropper seatpost available after adding bike to cart
Handlebar
Raceface Turbine R, 35mm clamp, 800mm, length customized through 23-point custom setup
Brake lever
SRAM Level T
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Chain
SRAM Eagle 12spd
Crankset
Truvativ Stylo 6k DUB
Shifter
SRAM GX Eagle Trigger 12-speed
Bottom bracket
SRAM DUB, English Thread
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Fezzari Racing Design MC279+ Monocoque carbon design, Tapered steerer, Integrated internal cable routing, oversize seat tube for lateral stiffness, English thread BB
Front suspension
Fox 34 Float Performance Elite
Wheels
Rims
Stans Arch MK3 29er
Tires
Maxxis Rekon, 27.5x2.8 EXO TR
Spokes
Sapim Race Black 2.0/1.8/2.0mm, 32H, Secure Lock Brass Silver Nipples
Rear hub
Stan's Neo, for SRAM XD Driver, 6 bolt, F: 15x110mm, R: 12x148mm
Front hub
Stan's Neo, for SRAM XD Driver, 6 bolt, F: 15x110mm, R: 12x148mm

Geometry

Size 16" 18" 20"
a
Seat tube length
406,0
457,2
508,0
b
Seat tube angle
70,5º
70,5º
70,5º
c
Top tube length
561,0
602,2
626,0
d
Head tube length
110,0
110,8
120,0
e
Head tube angle
68,5º
68,5º
68,5º
f
Rake
51,0
51,0
51,0
g
Trail
93,0
103,0
93,0
h
Wheelbase
1062,5
1095,0
1139,8
i
Chainstay length
431,0
431,0
431,0
j
Bottom bracket drop
51,8
51,8
51,8
k
Stack height
608,8
609,6
618,1
l
Reach
368,7
411,6
442,4
m
Standover height
712,12
762,92
813,72
x
Bottom bracket height
329,3
329,3
329,3
y
Front center
637,0
669,0
714,0
