Fezzari Solitude Team XTR 27.5+ 2021

MTB Cross Country
Groupset
Shimano XTR
Wheel size
27,5"
Suspension type
Hardtail

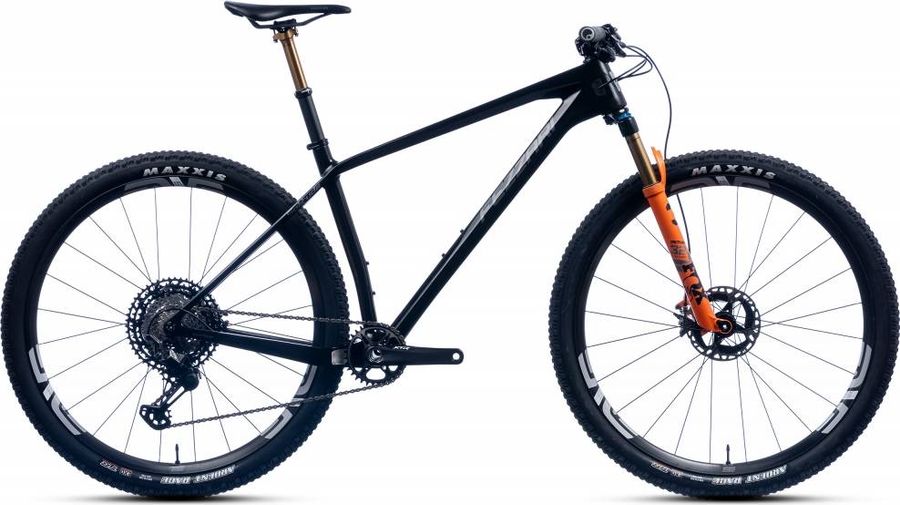

Fezzari Solitude Team XTR 27.5+ 2021

About the Fezzari Solitude Team XTR 27.5+ 2021

The Fezzari Solitude Team XTR 27.5+ 2021 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Fezzari Solitude Team XTR 27.5+ 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Saddle
Ergon SR Pro Carbon
Headset
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
Seatpost
Enve Carbon 31.6x400mm
Handlebar
ENVE M6 780mm +25mm rise, 31.8, customized sizing through 23-Point Custom Setup
Brake lever
Shimano XTR 9100 4
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Shimano XTR 9120
Shifter
Shimano XTR 9100 12-spd
Bottom bracket
Shimano XTR 9100 English Thread
Rear derailleur
Shimano XTR RD-M9100-GS 237 g GS 12s
Average weight (g)
237
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
45T
Lower pulley min
45T
Model
RD-M9100-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
35T
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Frameset
Frame
Fezzari 68HTA MonoForm construction, 100-120 mm Travel
Front suspension
Fox 34 Float Factory
Wheels
Rims
ENVE WS 29 M525 24H
Tires
MAXXIS 29X2.40WT Rekon Race EXO/TR
Rear hub
I9 Hydra XD 110/148 CL
Front hub
I9 Hydra XD 110/148 CL

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
400,0
460,0
500,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
580,0
605,0
629,0
660,0
d
Head tube length
95,0
100,0
115,0
130,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
89,0
89,0
94,0
89,0
h
Wheelbase
1107,0
1134,0
1159,0
1195,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
k
Stack height
597,0
602,0
616,0
630,0
l
Reach
407,0
432,0
457,0
482,0
m
Standover height
718,0
731,0
779,0
808,0
x
Bottom bracket height
298,5
298,5
298,5
298,5
y
Front center
686,0
713,0
738,0
774,0
