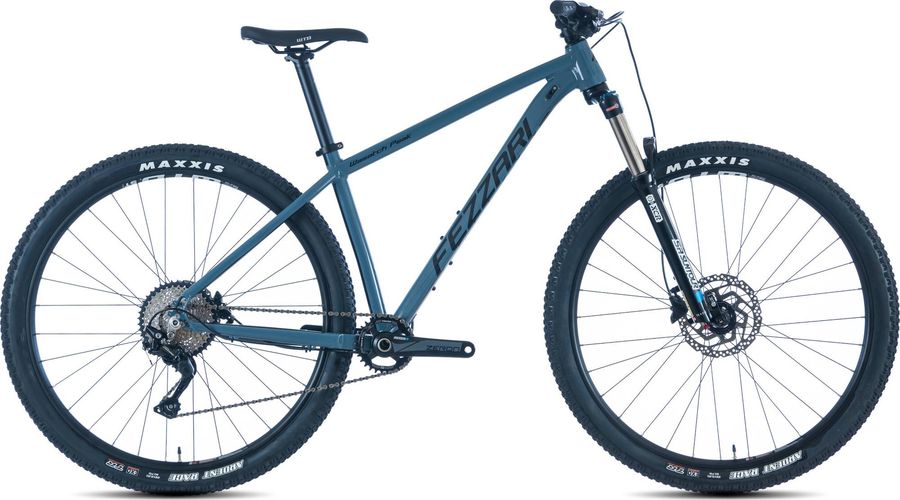

Fezzari Wasatch Peak Comp 29 2019
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
About the Fezzari Wasatch Peak Comp 29 2019
The Fezzari Wasatch Peak Comp 29 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include internal routing, boost 110 , and boost 148.
Features
Internal routing
More info
Internal routing
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Pedals
|
Available Separately
|
|---|
|
Steam
|
Fezzari 3D forged 31.8mm alloy, 7 degree, 4-bolt bar clamp (customized sizing through 23-Point Custom Setup)
|
|---|---|
|
Saddle
|
WTB Volt Sport
|
|
Headset
|
FSA No 57 ZS
|
|
Seatpost
|
Fezzari alloy, blast black, 31.6 x 350-400 (based on custom setup), Dropper seatpost available after adding bike to cart
|
|
Handlebar
|
Fezzari Racing Design Alloy, 20mm rise, 9 degree back seep, 5 degree upsweep, 31.8mm x 760-780 mm (customized sizing through 23-Point Custom Setup)
|
|
Brake lever
|
Shimano MT-200
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
SR Suntou Zeron 1x,
|
|---|---|
|
Shifter
|
Shimano Deore M6000, 10 speed
|
|
Bottom bracket
|
SR Suntour BB24 English
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
Fezzari Racing Design F29B frame, hydroformed doubled-butted 6061 aluminum tubing, 148x12 dropout, Internal cable routing, internal dropper post routing,replaceable derailleur hanger, water bottle bosses
|
|---|---|
|
Front suspension
|
SR Suntour XCR 34 AIR
|
|
Rims
|
WTB STP i25 29er TCS Tubeless Ready, 32h, Tubeless ready
|
|---|---|
|
Tires
|
Maxxis Ardent Race, 29x2.2, Tubeless Ready, MaxxSpeed
|
|
Spokes
|
1.8mm (15g) black stainless, brass nipples
|
|
Rear hub
|
Bear Pawls Sealed Bearing Front: Boost 110x15 thru axle, Rear: Boost 148x12mm thru Axle
|
|
Front hub
|
Bear Pawls Sealed Bearing Front: Boost 110x15 thru axle, Rear: Boost 148x12mm thru Axle
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
381,0
|
430,0
|
483,0
|
533,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
557,0
|
580,0
|
607,0
|
641,0
|
|
d
Head tube length
|
95,0
|
95,0
|
110,0
|
125,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
97,0
|
97,0
|
97,0
|
97,0
|
|
h
Wheelbase
|
1101,0
|
1124,0
|
1153,0
|
1179,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
433,0
|
433,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
611,0
|
611,0
|
625,0
|
639,0
|
|
l
Reach
|
393,0
|
416,0
|
439,0
|
460,0
|
|
m
Standover height
|
702,0
|
764,0
|
813,0
|
850,0
|
|
x
Bottom bracket height
|
315,0
|
315,0
|
315,0
|
315,0
|
|
y
Front center
|
675,0
|
698,0
|
727,0
|
753,0
|
