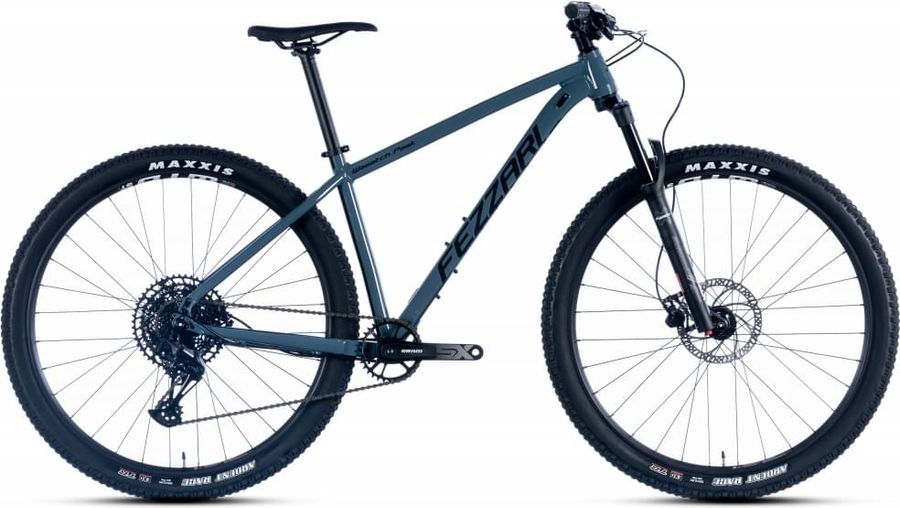

Fezzari Wasatch Peak Comp Race 27.5 Plus 2021
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
About the Fezzari Wasatch Peak Comp Race 27.5 Plus 2021
The Fezzari Wasatch Peak Comp Race 27.5 Plus 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148.
Features
Internal routing
More info
Internal routing
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Pedals
|
Available Separately
|
|---|
|
Steam
|
Fezzari 3D forged 31.8mm alloy, 7 degree, 4-bolt bar clamp (customized sizing through 23-Point Custom Setup)
|
|---|---|
|
Saddle
|
Selle Italia Model X
|
|
Headset
|
FSA No 57 ZS
|
|
Seatpost
|
Fezzari alloy, blast black, 31.6 x 350-400 (based on custom setup), Dropper seatpost available after adding bike to cart
|
|
Handlebar
|
Fezzari Racing Design Alloy, 20mm rise, 9 degree back seep, 5 degree upsweep, 31.8mm x 760-780 mm (customized sizing through 23-Point Custom Setup)
|
|
Brake lever
|
Tektro HD-M276 Hydraulic Disc
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
SRAM SX Eagle Crankset 12-Speed Power Spline Spindle Interface
|
|---|---|
|
Shifter
|
SRAM SX Eagle 12 Speed
|
|
Bottom bracket
|
SRAM Power Spline 118/73
|
|
Chain
|
SRAM SX Eagle
|
|
Cassette
|
SRAM PG-1210 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Frame
|
Fezzari Racing Design F29B frame, hydroformed doubled-butted 6061 aluminum tubing, 148x12 dropout, Internal cable routing, internal dropper post routing,replaceable derailleur hanger, water bottle bosses
|
|---|---|
|
Front suspension
|
X-Fusion RC32
|
|
Rims
|
WTB STP i35 27.5, TCS Tubeless Ready, 32h
|
|---|---|
|
Tires
|
Kenda Havok Pro 27.5x2.8, Tubeless Ready, dual tread compound, sidewall protection
|
|
Spokes
|
1.8mm (15g) black stainless, brass nipples
|
|
Rear hub
|
Bear Pawls Sealed Bearing Front: Boost 110x15 thru axle, Rear: Boost 148x12mm thru Axle
|
|
Front hub
|
Bear Pawls Sealed Bearing Front: Boost 110x15 thru axle, Rear: Boost 148x12mm thru Axle
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
400,0
|
460,0
|
500,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
580,0
|
605,0
|
629,0
|
660,0
|
|
d
Head tube length
|
95,0
|
100,0
|
115,0
|
130,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
89,0
|
89,0
|
94,0
|
89,0
|
|
h
Wheelbase
|
1107,0
|
1134,0
|
1159,0
|
1195,0
|
|
i
Chainstay length
|
427,0
|
427,0
|
427,0
|
427,0
|
|
j
Bottom bracket drop
|
58,0
|
58,0
|
58,0
|
58,0
|
|
k
Stack height
|
597,0
|
602,0
|
616,0
|
630,0
|
|
l
Reach
|
407,0
|
432,0
|
457,0
|
482,0
|
|
m
Standover height
|
718,0
|
731,0
|
779,0
|
808,0
|
|
x
Bottom bracket height
|
311,0
|
311,0
|
311,0
|
311,0
|
|
y
Front center
|
686,0
|
713,0
|
738,0
|
774,0
|
