Groupset
SRAM SX Eagle
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

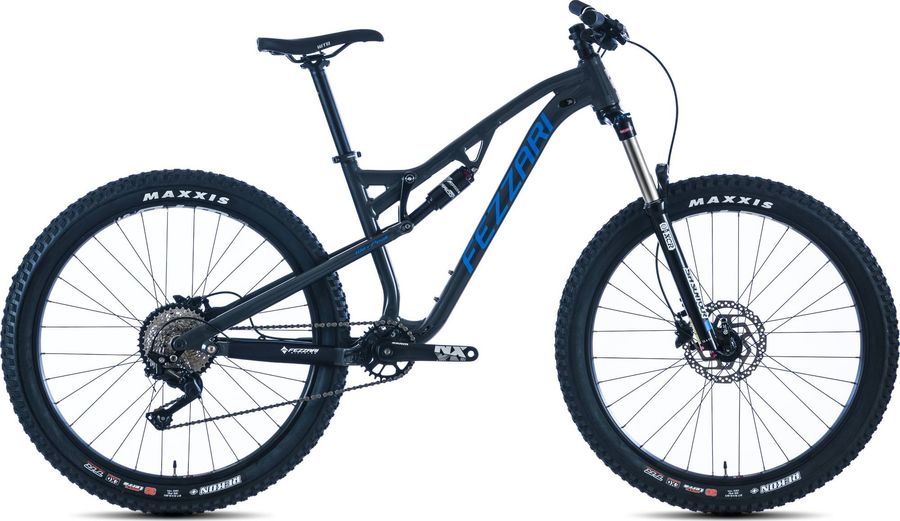

About the Fezzari Wiki Peak 2019
The Fezzari Wiki Peak 2019 is a Full suspension Trail Mountain Bike. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Pedals
|
Available Separately
|
|---|
|
Steam
|
Fezzari 3D forged 31.8mm alloy, 7 degree, 4-bolt bar clamp (customized sizing through 23-Point Custom Setup)
|
|---|---|
|
Saddle
|
WTB Volt Sport
|
|
Headset
|
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered
|
|
Seatpost
|
Fezzari Alloy, Dual Bolt Clamp, 31.6 x 350-400 (based on custom setup), Dropper seatpost available after adding bike to cart
|
|
Handlebar
|
Fezzari Trail mid-rise bar, 1" rise, 31.8mm diameter, 740mm width, double butted 6061 alloy, black
|
|
Brake lever
|
Tektro HD-M276 Hydraulic Disc
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
SRAM SX Eagle Crankset 12-Speed Power Spline Spindle Interface
|
|---|---|
|
Shifter
|
SRAM SX Eagle 12 Speed
|
|
Bottom bracket
|
SRAM Power Spline 118/73
|
|
Chain
|
SRAM SX Eagle
|
|
Cassette
|
SRAM PG-1210 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Frame
|
Fezzari Racing Design AT529, 130mm travel, full sealed cartridge bearings, replaceable derailleur hanger, tapered headtube, water bottle bosses
|
|---|---|
|
Front suspension
|
SR Suntour XCR 34 AIR
|
|
Rear suspension
|
SR Suntour Raidon
|
|
Rims
|
WTB Scraper i35 27.5+, 584x35c, TCS Tubeless Ready, 32 Hole
|
|---|---|
|
Tires
|
Maxxis Rekon 27.5x2.8 3C Exo Maxx Terra Tubeless Ready 120 TPI
|
|
Spokes
|
1.8mm (15g) black stainless steel, brass nipples
|
|
Rear hub
|
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm
|
|
Front hub
|
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
420,0
|
457,0
|
495,0
|
|
b
Seat tube angle
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
|
c
Top tube length
|
561,0
|
588,0
|
616,0
|
645,0
|
|
d
Head tube length
|
100,0
|
105,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
66,9º
|
66,9º
|
66,9º
|
66,9º
|
|
f
Rake
|
41,0
|
41,0
|
41,0
|
42,0
|
|
g
Trail
|
107,0
|
107,0
|
107,0
|
106,0
|
|
h
Wheelbase
|
1135,0
|
1162,0
|
1192,0
|
1222,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
22,0
|
22,0
|
22,0
|
22,0
|
|
k
Stack height
|
605,0
|
610,0
|
614,0
|
623,0
|
|
l
Reach
|
410,0
|
435,0
|
463,0
|
489,0
|
|
m
Standover height
|
742,0
|
747,0
|
765,0
|
772,0
|
|
x
Bottom bracket height
|
343,0
|
343,0
|
343,0
|
343,0
|
|
y
Front center
|
704,0
|
731,0
|
761,0
|
791,0
|
