Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

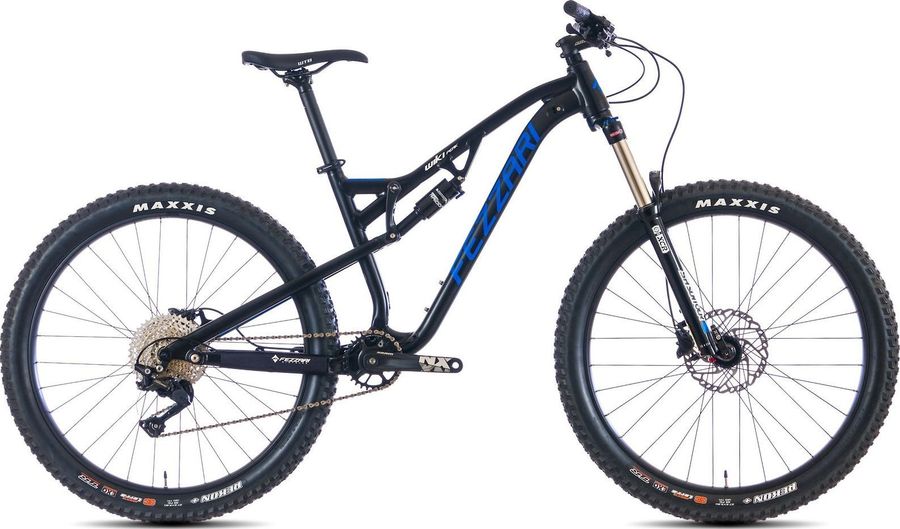

About the Fezzari Wiki Peak 27.5 Plus 2018
The Fezzari Wiki Peak 27.5 Plus 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Velo MTB grip
|
|---|---|
|
Pedals
|
Available separately
|
|
Steam
|
Fezzari 3D, forged, 31.8mm alloy, 7°, 4-bolt bar clamp (customized sizing)
|
|---|---|
|
Saddle
|
WTB Volt Sport
|
|
Headset
|
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing
|
|
Seatpost
|
Fezzari Alloy, 350mm-400mm (based on custom setup)
|
|
Handlebar
|
Fezzari XC mid-rise bar, 1" rise, 31.8mm diameter, 740mm width, double butted 6061 alloy, black
|
|
Brake lever
|
Shimano Altus BR-M315
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
SRAM 1X NX
|
|---|---|
|
Shifter
|
Shimano Deore M6000, 10-speed, Rapidfire Plus, Vivid index shifting, 2-way release
|
|
Bottom bracket
|
SRAM Power Spline 118/73, threaded
|
|
Cassette
|
Sunrace 10-speed
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
SR Suntour XCR
|
|
Rear suspension
|
SR Suntour Raidon
|
|
Rims
|
WTB Scraper i35 27.5+, 584x35c, TCS tubeless ready, 32 hole
|
|---|---|
|
Tires
|
Maxxis Rekon, 2.8", 3C Exo, Maxx Terra, tubeless ready, 120 TPI
|
|
Spokes
|
1.8mm (15g) black stainlesssteel, brass nipples
|
|
Rear hub
|
Front: Formula Disc, Boost 15mm x 110mm, Rear: Formula Disc, Boost 12mm x 148mm
|
|
Front hub
|
Front: Formula Disc, Boost 15mm x 110mm, Rear: Formula Disc, Boost 12mm x 148mm
|
Geometry
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
400,0
|
420,0
|
420,0
|
457,0
|
457,0
|
495,0
|
495,0
|
|
b
Seat tube angle
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
|
c
Top tube length
|
561,0
|
561,0
|
588,0
|
588,0
|
616,0
|
616,0
|
645,0
|
645,0
|
|
d
Head tube length
|
100,0
|
100,0
|
105,0
|
105,0
|
110,0
|
110,0
|
120,0
|
120,0
|
|
e
Head tube angle
|
66,9º
|
66,9º
|
66,9º
|
66,9º
|
66,9º
|
66,9º
|
66,9º
|
66,9º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1135,0
|
1135,0
|
1162,0
|
1162,0
|
1192,0
|
1192,0
|
1222,0
|
1222,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
13,0
|
32,0
|
13,0
|
32,0
|
13,0
|
32,0
|
13,0
|
32,0
|
|
k
Stack height
|
605,0
|
605,0
|
610,0
|
610,0
|
614,0
|
614,0
|
623,0
|
623,0
|
|
l
Reach
|
410,0
|
410,0
|
435,0
|
435,0
|
463,0
|
463,0
|
489,0
|
489,0
|
|
m
Standover height
|
741,7
|
741,7
|
746,8
|
746,8
|
764,5
|
764,5
|
772,2
|
772,2
|
|
x
Bottom bracket height
|
342,9
|
342,9
|
342,9
|
342,9
|
342,9
|
342,9
|
342,9
|
342,9
|
|
y
Front center
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
