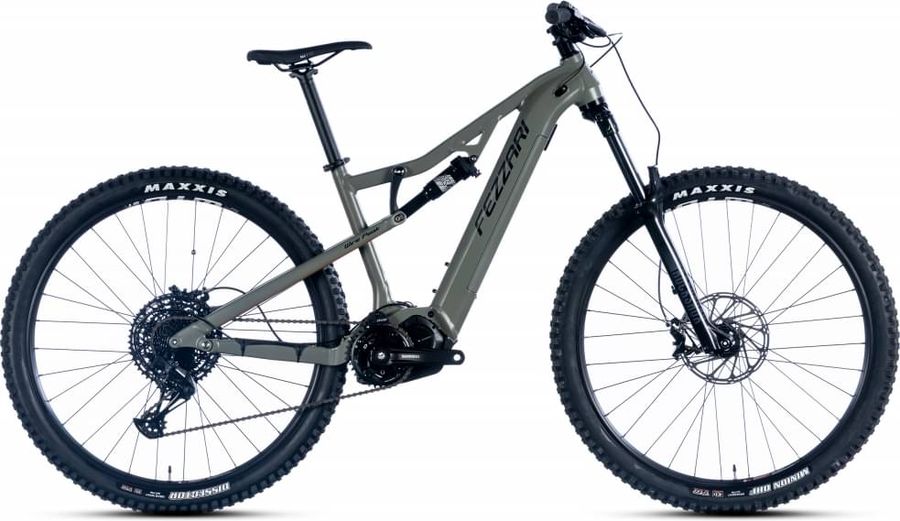

Fezzari Wire Peak Comp 29 2022
The Fezzari Wire Peak Comp 29 2022 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM SX Eagle
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm
About the Fezzari Wire Peak Comp 29 2022
The Fezzari Wire Peak Comp 29 2022 is a Full suspension Trail Mountain Bike. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Pedals
|
Available Separately
|
|---|
|
Steam
|
Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit
|
|---|---|
|
Saddle
|
Selle Italia Model X
|
|
Headset
|
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
|
|
Seatpost
|
Fezzari Alloy, Dual Bolt Clamp, 31.6 x 350-400 (based on custom setup), Dropper seatpost available after adding bike to cart
|
|
Handlebar
|
Fezzari FRD Charger35, alloy, 35mm clamp, 780mm wide, 1'mm riser, 9 degree bend
|
|
Brake lever
|
SRAM Guide
|
|
Brakes
|
SRAM Guide R
Hydraulic
392 g
|
|
|
|
|
Crankset
|
Shimano E8000, 165mm
|
|---|---|
|
Motor
|
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, Shimano/SRAM Driver
|
|
Shifter
|
SRAM SX Eagle Trigger, 1x12
|
|
Bottom bracket
|
Shimano E7000 Bike motor system
|
|
Chain
|
SRAM SX Eagle
|
|
Cassette
|
SRAM PG-1210 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Frame
|
Fezzari Racing Design AT5529-E, 140mm travel TetraLink™ suspension, CleanCatch™ rattle-proof cable guides, Frame Defense Tech derailleur hanger, Internal battery compartment with removable battery, sealed cartridge bearings
|
|---|---|
|
Front suspension
|
RockShox Recon RL
Solo Air
|
|
|
|
|
Rear suspension
|
X-Fusion O2 Pro RL
|
|
Rims
|
WTB ST i29 2.0, Tubeless ready
|
|---|---|
|
Tires
|
Front: Maxxis Minion DHF 29X2.5 WT Exo Tubeless Ready 60 TPI, Rear: Maxxis Dissector 29X2.4 Exo Tubeless Ready
|
|
Spokes
|
1.8mm (15g) black stainless, brass nipples
|
|
Rear hub
|
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, Shimano/SRAM Driver
|
|
Front hub
|
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, Shimano/SRAM Driver
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
420,0
|
457,0
|
460,0
|
|
b
Seat tube angle
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
|
c
Top tube length
|
563,0
|
589,0
|
618,0
|
647,0
|
|
d
Head tube length
|
105,0
|
105,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
106,0
|
132,0
|
132,0
|
134,0
|
|
h
Wheelbase
|
1167,8
|
1169,0
|
1198,0
|
1229,0
|
|
i
Chainstay length
|
434,0
|
434,0
|
434,0
|
434,0
|
|
j
Bottom bracket drop
|
30,0
|
30,0
|
30,0
|
30,0
|
|
k
Stack height
|
625,0
|
629,6
|
634,2
|
648,3
|
|
l
Reach
|
399,0
|
424,0
|
451,7
|
478,0
|
|
m
Standover height
|
785,0
|
787,0
|
787,0
|
792,0
|
|
x
Bottom bracket height
|
346,0
|
346,0
|
346,0
|
346,0
|
|
y
Front center
|
735,0
|
737,0
|
766,0
|
797,0
|
