Fezzari Wire Peak Elite 27.5+ 2021

E-Bike
MTB Trail
Groupset
SRAM NX Eagle
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm

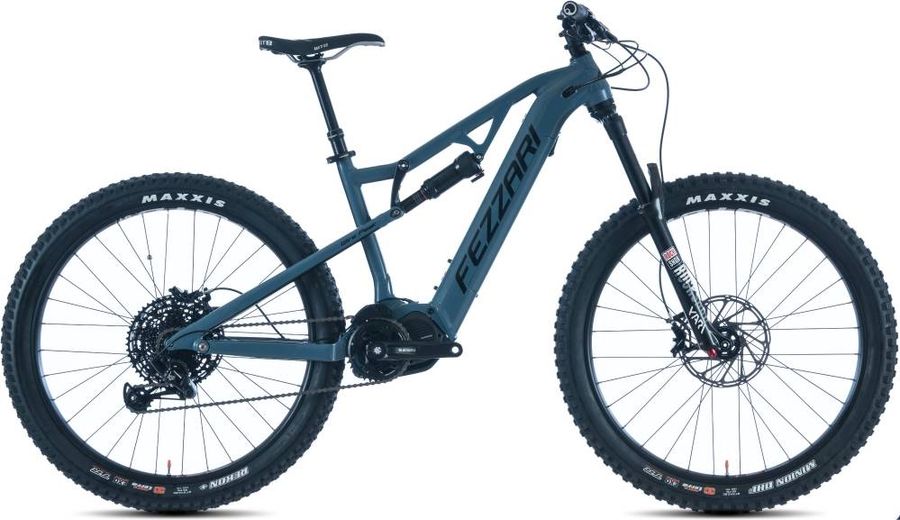

Fezzari Wire Peak Elite 27.5+ 2021

About the Fezzari Wire Peak Elite 27.5+ 2021

The Fezzari Wire Peak Elite 27.5+ 2021 is a Full suspension Trail Mountain Bike. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Fezzari Wire Peak Elite 27.5+ 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
Available Separately
Components
Steam
Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit
Saddle
WTB Volt Comp
Headset
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered, with 10mm lower cup
Seatpost
X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout)
Handlebar
Fezzari FRD Charger35, alloy, 35mm clamp, 780mm wide, 1mm riser, 9 degree bend
Brake lever
SRAM Guide RS
Brakes
SRAM Guide RS Hydraulic 384 g
Application
MTB
Blade material
Aluminum - Forged, Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RS-B1
Name
Guide RS
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
384
Drivetrain
Crankset
Shimano E8000, 165mm
Motor
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, Shimano/SRAM Driver
Shifter
SRAM NX Eagle Trigger, 1x12, Single Click E-specific
Bottom bracket
Shimano E8000 Bike motor system
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Fezzari Racing Design AT5529-E, 140mm travel TetraLink™ suspension, CleanCatch™ rattle-proof cable guides, Frame Defense Tech derailleur hanger, Internal battery compartment with removable battery, sealed cartridge bearings
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
WTB ST i35 2.0, Tubeless ready, 27.5+ diameter designed for 2.8 wide tires
Tires
Front: Maxxis Minion DHF 27.5x2.8 3C Exo Maxx Terra Tubeless Ready 120 TPI, Rear: Maxxis Rekon 27.5x2.8 3C Exo Maxx Terra Tubeless Ready 120 TPI
Spokes
1.8mm (15g) black stainless, brass nipples
Rear hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, Shimano/SRAM Driver
Front hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, Shimano/SRAM Driver

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
420,0
457,0
460,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
565,0
591,0
620,0
649,0
d
Head tube length
105,0
105,0
110,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
89,0
114,0
116,0
117,0
h
Wheelbase
1168,8
1170,0
1199,0
1230,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
615,0
620,0
624,0
638,0
l
Reach
400,0
425,0
452,7
479,0
m
Standover height
782,0
784,0
784,0
789,0
x
Bottom bracket height
344,0
344,0
344,0
344,0
y
Front center
735,0
736,0
765,0
796,0
