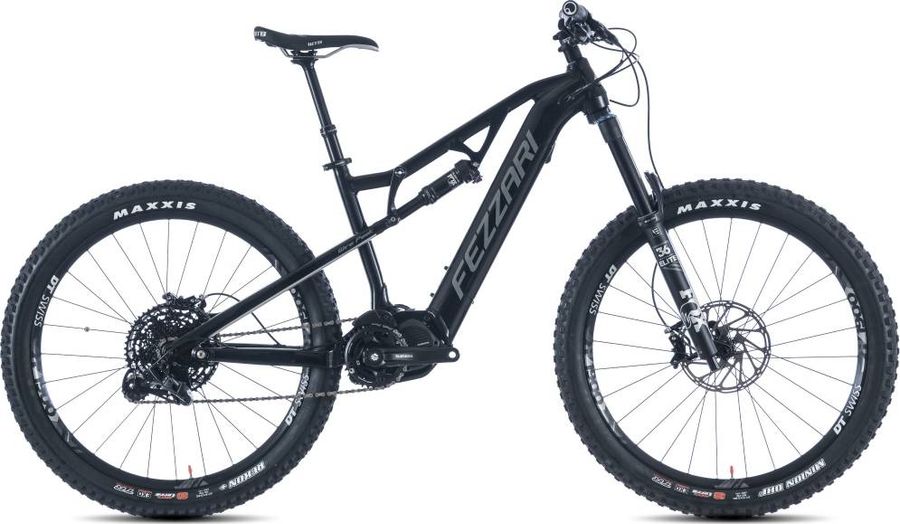

Fezzari Wire Peak Pro 27.5+ 2020
The Fezzari Wire Peak Pro 27.5+ 2020 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM GX Eagle
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
140mm
About the Fezzari Wire Peak Pro 27.5+ 2020
The Fezzari Wire Peak Pro 27.5+ 2020 is a Full suspension Trail Mountain Bike. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Pedals
|
Available Separately
|
|---|
|
Steam
|
RaceFace Ride 35mm
|
|---|---|
|
Saddle
|
WTB Volt Comp
|
|
Headset
|
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered
|
|
Seatpost
|
X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout)
|
|
Handlebar
|
RaceFace Turbine R, 20mm riser, 780mm
|
|
Brake lever
|
SRAM Code RSC
|
|
Brakes
|
SRAM Code RSC
Hydraulic
|
|
|
|
|
Crankset
|
Shimano E8000, 165mm
|
|---|---|
|
Shifter
|
SRAM GX Eagle Trigger, 1x12, Single Click E-specific
|
|
Bottom bracket
|
Shimano E8000 Bike motor system
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
Fezzari Racing Design AT5529-E, 140mm travel TetraLink™ suspension, CleanCatch™ rattle-proof cable guides, Frame Defense Tech derailleur hanger, Internal battery compartment with removable battery, sealed cartridge bearings
|
|---|---|
|
Front suspension
|
Fox 36 Performance Elite
|
|
Rear suspension
|
Fox Float DPS Performance Elite
|
|
Rims
|
DT Swiss H1900, 35mm internal width, E-specific
|
|---|---|
|
Tires
|
Front: Maxxis Minion DHF 27.5x2.8 3C Exo Maxx Terra Tubeless Ready 120 TPI, Rear: Maxxis Rekon 27.5x2.8 3C Exo Maxx Terra Tubeless Ready 120 TPI
|
|
Spokes
|
DT Swiss H1900
|
|
Rear hub
|
DT Swiss H1900, 148x12, 15x110, E-specific
|
|
Front hub
|
DT Swiss H1900, 148x12, 15x110, E-specific
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
420,0
|
457,0
|
460,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
565,0
|
591,0
|
620,0
|
649,0
|
|
d
Head tube length
|
105,0
|
105,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
89,0
|
114,0
|
116,0
|
117,0
|
|
h
Wheelbase
|
1168,8
|
1170,0
|
1199,0
|
1230,0
|
|
i
Chainstay length
|
435,0
|
435,0
|
435,0
|
435,0
|
|
j
Bottom bracket drop
|
20,0
|
20,0
|
20,0
|
20,0
|
|
k
Stack height
|
615,0
|
620,0
|
624,0
|
638,0
|
|
l
Reach
|
400,0
|
425,0
|
452,7
|
479,0
|
|
m
Standover height
|
782,0
|
784,0
|
784,0
|
789,0
|
|
x
Bottom bracket height
|
344,0
|
344,0
|
344,0
|
344,0
|
|
y
Front center
|
735,0
|
736,0
|
765,0
|
796,0
|
