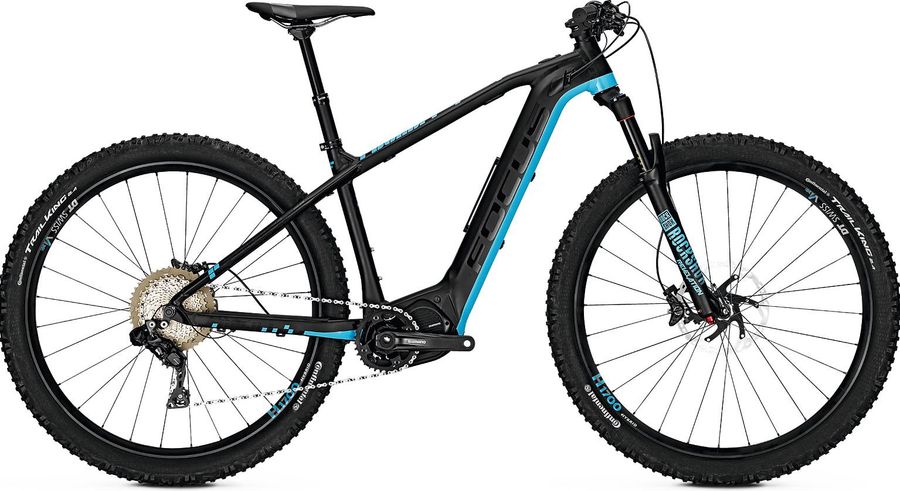

Focus BOLD² 29 Pro 2018
The Focus BOLD² 29 Pro 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm
About the Focus BOLD² 29 Pro 2018
The Focus BOLD² 29 Pro 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Remote
|
Shimano Steps E8000, colored LCD display, walk assist, bluetooth
|
|---|
|
Steam
|
BBB, aluminium, Di2, 31.8 mm, 55 mm
|
|---|---|
|
Battery
|
10,5 Ah
|
|
Seatpost
|
KindShock E30i, 31,6mm, internal
|
|
Handlebar
|
BBB, aluminium, Di2, flatbar, 760mm, rise: 0mm, backsweep: 9degree
|
|
Brakes
|
Shimano Deore XT BR-M8000
403 (BL-M8000) g
Hydraulic disc brake
2 piston
|
|
G03A Resin J03A Resin BL-T8000 SM-RT86 |
|
|
Motor
|
Shimano Steps E8000, 70 Nm, 250 W
|
|---|---|
|
Shifter
|
Shimano Deore XT 8050, Di2
|
|
Rear derailleur
|
Shimano Deore XT RD-M8050 Di2
|
|
Frame
|
7005 hydroformed aluminium, 3D forging, 148x12 mm through axle, internal cable routing, post mount 180 mm, kickstand mount 18 mm
|
|---|---|
|
Front suspension
|
RockShox Revelation RC
DebonAir
|
|
|
|
|
Rims
|
DT-Swiss H1700, 622-30, 148x12 mm / 110x15 mm
|
|---|---|
|
Tires
|
Continental Trail King SL, 2.4, foldable
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
440,0
|
470,0
|
500,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
582,0
|
595,0
|
615,0
|
631,0
|
|
d
Head tube length
|
100,0
|
110,0
|
130,0
|
150,0
|
|
e
Head tube angle
|
67,5º
|
67,5º
|
67,5º
|
67,5º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
100,0
|
99,0
|
100,0
|
100,0
|
|
h
Wheelbase
|
1149,0
|
1163,0
|
1185,0
|
1208,0
|
|
i
Chainstay length
|
453,0
|
453,0
|
453,0
|
453,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
619,0
|
628,0
|
647,0
|
665,0
|
|
l
Reach
|
403,0
|
413,0
|
428,0
|
443,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
314,0
|
314,0
|
314,0
|
314,0
|
|
y
Front center
|
702,0
|
716,0
|
738,0
|
761,0
|
