Focus JAM 6.8 SEVEN 2020

MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,25 kg
Front travel
150mm
Rear travel
150mm

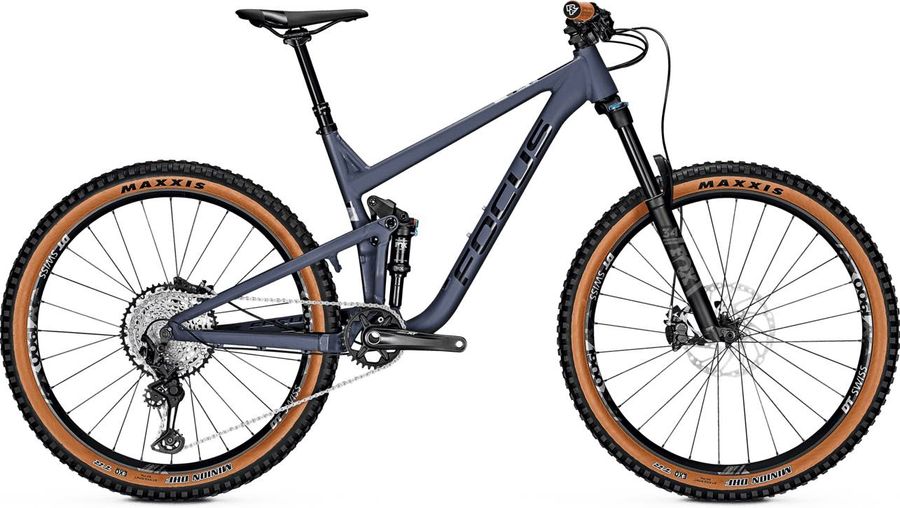

Focus JAM 6.8 SEVEN 2020

About the Focus JAM 6.8 SEVEN 2020

The Focus JAM 6.8 SEVEN 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 14,25 kg.

Features

The Focus JAM 6.8 SEVEN 2020 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Race Face Grippler
Components
Steam
BBB Jumper BHS-137, 31.8mm
Saddle
FOCUS Trail SL
Headset
Acros AZX-212 AH, 1-1/8", tapered, 44/286-ZS56/40
Seatpost
Kind Shock E30i, 31,6mm
Handlebar
BBB Ascension BHB-110, aluminium, riserbar, 780mm, rise: 20mm, backsweep: 9degree
Brake lever
Shimano BR-M8100
Drivetrain
Crankset
Shimano Deore XT FC-M8100, Hollowtech II
Shifter
Shimano Deore XT M8100, 12-speed
Bottom bracket
BSA
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
6061 Aluminum, 150mm F.O.L.D. kinematic, BSA BB, ISCG 05, 148x12 thru axle, internal cable routing, Post Mount 180 mm
Front suspension
Fox 34 Float Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
DT Swiss M1900, 584-30, 148x12 mm / 110x15 mm
Tires
Maxxis Minion DHF 2.5 3C EXO TR

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
440,0
470,0
500,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
563,0
592,0
618,0
643,0
d
Head tube length
110,0
110,0
135,0
135,0
e
Head tube angle
66,8º
66,8º
66,8º
66,8º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
115,0
116,0
116,0
116,0
h
Wheelbase
1124,0
1144,0
1174,0
1202,0
i
Chainstay length
418,0
418,0
418,0
418,0
j
Bottom bracket drop
16,0
16,0
16,0
16,0
k
Stack height
583,0
585,0
608,0
626,0
l
Reach
408,0
428,0
448,0
468,0
m
Standover height
-
-
-
-
x
Bottom bracket height
358,0
358,0
358,0
358,0
y
Front center
706,0
726,0
756,0
784,0
