Focus JAM² 6.9 NINE 2021

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
25,15 kg
Front travel
150mm
Rear travel
150mm

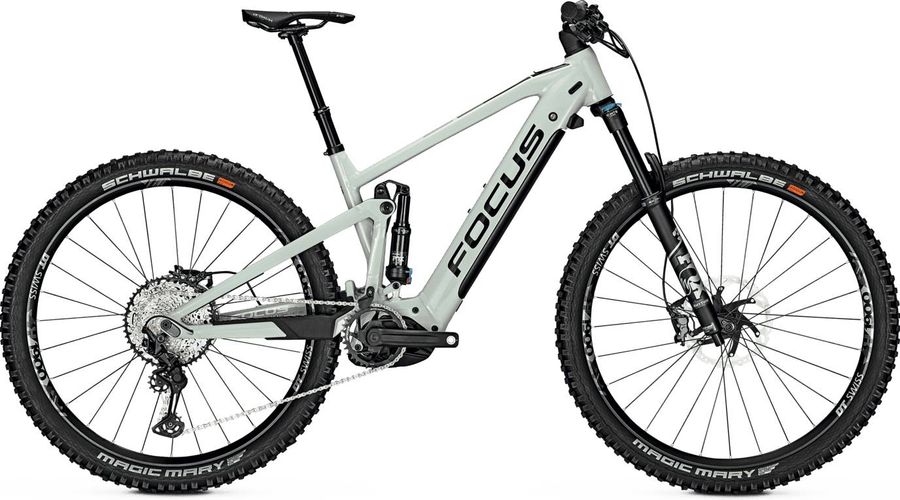

Focus JAM² 6.9 NINE 2021

About the Focus JAM² 6.9 NINE 2021

The Focus JAM² 6.9 NINE 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 25,15 kg.

Features

The Focus JAM² 6.9 NINE 2021 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
BBB Cobra BHG-96
Remote
Bosch Purion
Components
Steam
FOCUS C.I.S. integrated, 50 mm, 0° degree, 35 mm, aluminium
Saddle
Proxim W350
Battery
625 Wh
Headset
ACROS ZS56/ZS56, FOCUS C.I.S. Integrated
Seatpost
Kind Shock RAGE, 31,6 x 442 mm,Kind Shock RAGE, 31,6 x 495 mm,Kind Shock RAGE, 31,6 x 392 mm
Handlebar
RaceFace Chester 35, aluminium, 780mm, rise: 35mm, backsweep: 8degree
Brake lever
Shimano XT M8120, 4 piston
Drivetrain
Crankset
Samox EC40 ISIS
Motor
Bosch Performance CX Gen4, 85 Nm, 250 W
Shifter
Shimano Deore XT M8100, 12-speed
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 203 mm
Rear suspension
Fox Float DPS
Front suspension
Fox 36 Float Rhythm
Wheels
Rims
DT SWISS H1900, 622-30, 6-bolt, 15x110 / 12x148
Tires
Schwalbe Magic Mary 2.6 Super Trail Soft

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
420,0
450,0
490,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
573,0
600,0
630,0
661,0
d
Head tube length
110,0
115,0
130,0
150,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
116,0
116,0
116,0
116,0
h
Wheelbase
1163,0
1190,0
1221,0
1254,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
10,0
10,0
10,0
10,0
k
Stack height
607,0
612,0
625,0
644,0
l
Reach
420,0
445,0
470,0
495,0
m
Standover height
-
-
-
-
x
Bottom bracket height
364,0
364,0
364,0
364,0
y
Front center
736,0
763,0
794,0
827,0
