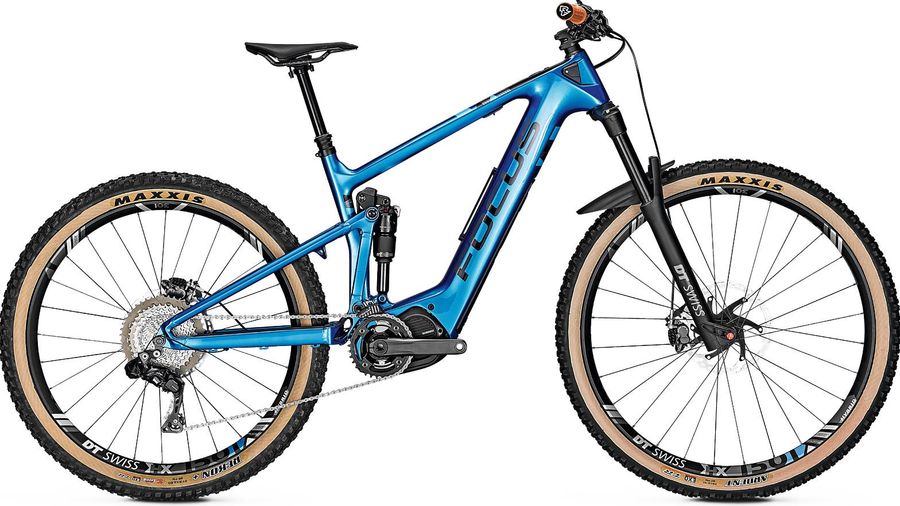

Focus JAM² 9.8 DRIFTER 2019
The Focus JAM² 9.8 DRIFTER 2019 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm
About the Focus JAM² 9.8 DRIFTER 2019
The Focus JAM² 9.8 DRIFTER 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain. Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Remote
|
Shimano Steps E8000, colored LCD display, walk assist, bluetooth
|
|---|
|
Steam
|
BBB, aluminium, Di2, 31.8 mm, 55 mm
|
|---|---|
|
Battery
|
10,5 Ah
|
|
Seatpost
|
Fox Transfer Performance, 31.6 mm
|
|
Handlebar
|
BBB, aluminium, Di2, riserbar, 780mm, rise: 20mm, backsweep: 9degree
|
|
Brake lever
|
Shimano Deore XT M8000
|
|
Brakes
|
Shimano Deore XT BR-M8020
Hydraulic disc brake
4 piston
|
|
D03S Resin H03A Resin SM-RT99 RT-EM810 RT-EM910 |
|
|
Motor
|
Shimano Steps E8000, 70 Nm, 250 W
|
|---|---|
|
Shifter
|
Shimano Deore XT 8050, Di2
|
|
Rear derailleur
|
Shimano Deore XT RD-M8050 Di2
|
|
Frame
|
Carbon front triangle, 7005 aluminium rear triangle, 3D forging, 150 mm F.O.L.D. kinematic, 148x12 mm through axle, internal cable routing, post mount 180 mm
|
|---|---|
|
Rear suspension
|
DT Swiss R535
|
|
Front suspension
|
DT Swiss F535
|
|
Rims
|
DT Swiss H1501 Spline One, rear: 584-35, front: 622-30, 148x12 mm / 110x15 mm
|
|---|---|
|
Tires
|
Maxxis Ardent 2.4 3C EXO TR
|
Geometry
| Size | SM | MD | LG |
|---|---|---|---|
|
a
Seat tube length
|
410,0
|
440,0
|
470,0
|
|
b
Seat tube angle
|
73,6º
|
73,6º
|
73,6º
|
|
c
Top tube length
|
577,0
|
597,0
|
617,0
|
|
d
Head tube length
|
120,0
|
120,0
|
140,0
|
|
e
Head tube angle
|
65,6º
|
65,6º
|
65,6º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
118,0
|
123,0
|
127,0
|
|
h
Wheelbase
|
1181,0
|
1197,0
|
1212,0
|
|
i
Chainstay length
|
450,0
|
450,0
|
450,0
|
|
j
Bottom bracket drop
|
18,0
|
18,0
|
18,0
|
|
k
Stack height
|
617,0
|
617,0
|
627,0
|
|
l
Reach
|
398,0
|
418,0
|
433,0
|
|
m
Standover height
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
356,0
|
356,0
|
356,0
|
|
y
Front center
|
732,0
|
748,0
|
763,0
|
