Focus JAM² 9.8 NINE 2020

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
20,7 kg
Front travel
150mm
Rear travel
150mm

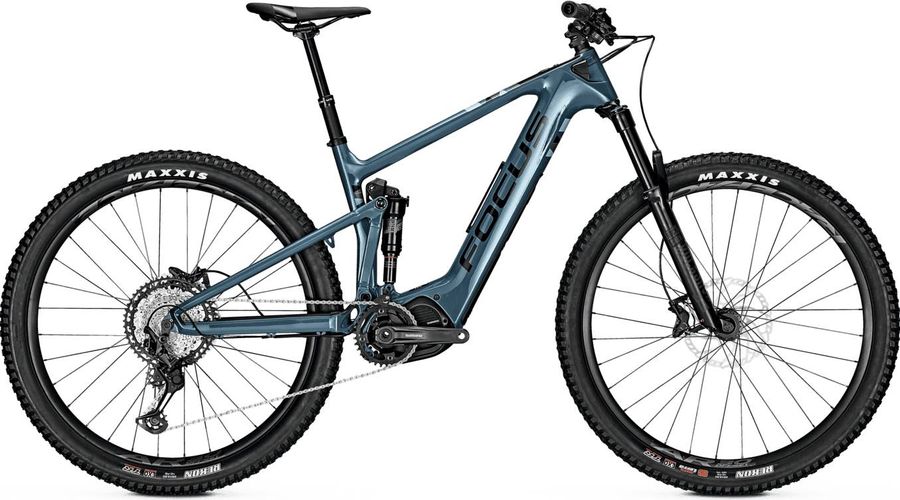

Focus JAM² 9.8 NINE 2020

About the Focus JAM² 9.8 NINE 2020

The Focus JAM² 9.8 NINE 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain. Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 20,7 kg.

Features

The Focus JAM² 9.8 NINE 2020 has 6 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
BBB Cobra BHG-96
Remote
Shimano Steps E7000, black/white LCD display, walk assist, bluetooth
Components
Steam
BBB Jumper BHS-138, 31.8 mm
Saddle
FOCUS Trail SL
Battery
756 Wh (378 Wh internal, 378 Wh external T.E.C. Pack)
Headset
Acros AIX-322, tapered, IS 42/286-IS52/40
Seatpost
Kind Shock E30i, 31,6mm
Handlebar
BBB Ascension BHB-110-Di2, aluminium, riserbar, 780mm, rise: 20mm, backsweep: 9degree
Brake lever
Shimano BR-MT520
Drivetrain
Crankset
Shimano FC-E8000
Motor
Shimano Steps E8000, 70 Nm, 250 W
Shifter
Shimano SLX M7100, 12-speed
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Carbon front triangle, 7005 aluminium rear triangle, 3D forging, 150 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 180 mm
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Front suspension
RockShox 35 Gold RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35G-RL-A1
Name
35 Gold RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
RaceFace AR30 Offset
Tires
Maxxis Rekon 2.6 3C EXO TR
Rear hub
Novatec D162 Disc, 12x148 mm
Front hub
Novatec D041, 15x110 mm thru axle

Geometry

Size SM MD LG
a
Seat tube length
410,0
440,0
470,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
575,0
595,0
615,0
d
Head tube length
120,0
120,0
140,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
51,0
51,0
51,0
g
Trail
107,0
107,0
115,0
h
Wheelbase
1188,0
1208,0
1223,0
i
Chainstay length
463,0
463,0
463,0
j
Bottom bracket drop
20,0
20,0
20,0
k
Stack height
611,0
611,0
629,0
l
Reach
403,0
423,0
438,0
m
Standover height
-
-
-
x
Bottom bracket height
354,0
354,0
354,0
y
Front center
726,0
746,0
761,0
