Focus JAM C FACTORY 29 2018

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm

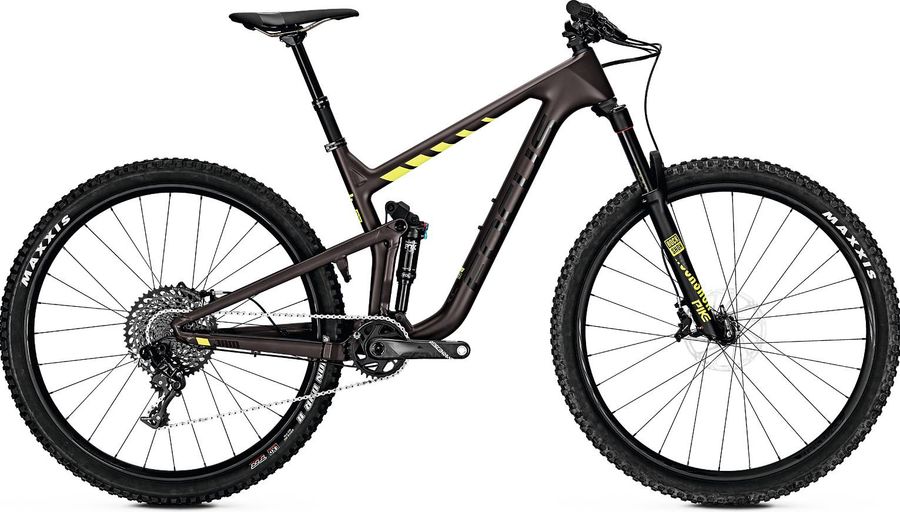

Focus JAM C FACTORY 29 2018

About the Focus JAM C FACTORY 29 2018

The Focus JAM C FACTORY 29 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain. Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Focus JAM C FACTORY 29 2018 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
BBB, aluminium, 31.8mm
Seatpost
Fox Transfer Performance, 31.6 mm
Handlebar
BBB, aluminium, flatbar, 760mm, rise: 0mm, backsweep: 9degree
Brakes
SRAM Guide RS Hydraulic 384 g
Application
MTB
Blade material
Aluminum - Forged, Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RS-B1
Name
Guide RS
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
384
Drivetrain
Shifter
SRAM GX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon front triangle, 6066 aluminium rear triangle, PF30 BB, 148x12 through axle, internal cable routing, Post Mount 180 mm
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
RaceFace Turbine R30, 622-30, 148x12 mm / 110x15 mm
Tires
Highroller 2 2.3 3C/TR/ EXO, foldable

Geometry

Size SM MD LG XL
a
Seat tube length
420,0
440,0
480,0
510,0
b
Seat tube angle
74,2º
74,2º
74,2º
74,2º
c
Top tube length
588,0
608,0
635,0
660,0
d
Head tube length
110,0
110,0
140,0
160,0
e
Head tube angle
67,3º
67,3º
67,3º
67,3º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
111,0
101,0
102,0
101,0
h
Wheelbase
1146,0
1175,0
1204,0
1232,0
i
Chainstay length
443,0
443,0
443,0
443,0
j
Bottom bracket drop
29,0
29,0
29,0
29,0
k
Stack height
625,0
625,0
648,0
665,0
l
Reach
413,0
433,0
453,0
473,0
m
Standover height
-
-
-
-
x
Bottom bracket height
345,0
345,0
345,0
345,0
y
Front center
705,0
734,0
763,0
790,0
