Focus JAM² C SL 2018

E-Bike
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Focus JAM² C SL 2018

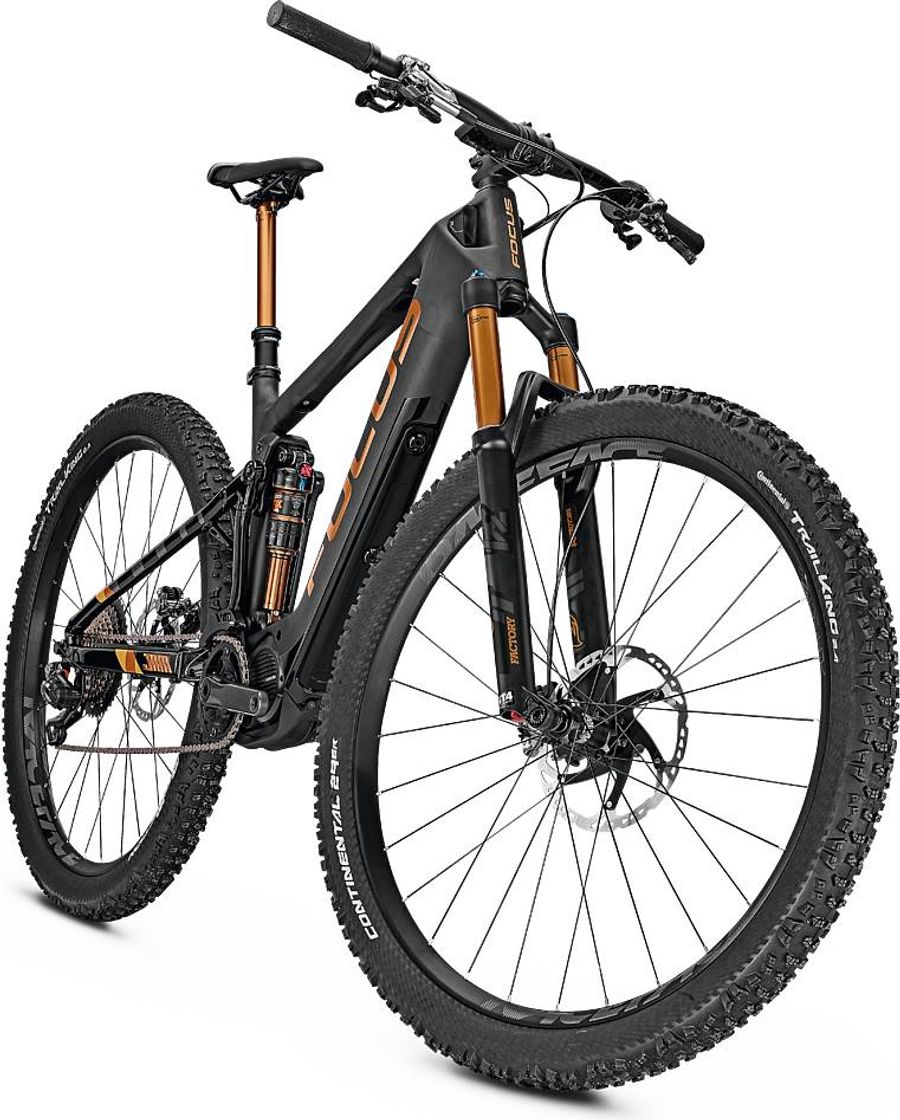

About the Focus JAM² C SL 2018

The Focus JAM² C SL 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain. Its features include internal routing, dropper seatpost, and boost 110 .


Features

The Focus JAM² C SL 2018 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Remote
Shimano Steps E8000, colored LCD display, walk assist, bluetooth
Components
Steam
BBB, aluminium, Di2, 31.8 mm, 55 mm
Battery
10,5 Ah
Seatpost
Fox Transfer Factory 31,6mm, internal, 1by remote
Handlebar
BBB, aluminium, Di2, flatbar, 760mm, rise: 0mm, backsweep: 9degree
Brakes
Shimano XTR BR-M9020 359.6 g Hydraulic disc brake 2 piston
Average weight (g)
359.6
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G02A Resin
G03A Resin
Pad option
G04Ti Metal
Pad standard
J02A Resin
J03A Resin
Pad standard
J04C Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Motor
Shimano Steps E8000, 70 Nm, 250 W
Shifter
Shimano Deore XT 8050, Di2
Rear derailleur
Shimano XTR RD-M9050 Di2
Frameset
Frame
Carbon front triangle, 7005 aluminium rear triangle, 3D forging, 140 mm F.O.L.D. kinematic, 148x12 mm through axle, internal cable routing, post mount 180 mm
Front suspension
Fox 34 Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
Race Face Next-R, 662-32, 148x12 mm / 110x15 mm
Tires
Continental Trail King SL, 2.4, foldable

Geometry

Size SM MD LG
a
Seat tube length
410,0
440,0
470,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
575,0
595,0
615,0
d
Head tube length
120,0
120,0
140,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
51,0
51,0
51,0
g
Trail
107,0
107,0
115,0
h
Wheelbase
1188,0
1208,0
1223,0
i
Chainstay length
463,0
463,0
463,0
j
Bottom bracket drop
20,0
20,0
20,0
k
Stack height
611,0
611,0
629,0
l
Reach
403,0
423,0
438,0
m
Standover height
-
-
-
x
Bottom bracket height
354,0
354,0
354,0
y
Front center
726,0
746,0
761,0
