BikeWise

Focus JAM C SL 27 2018

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm

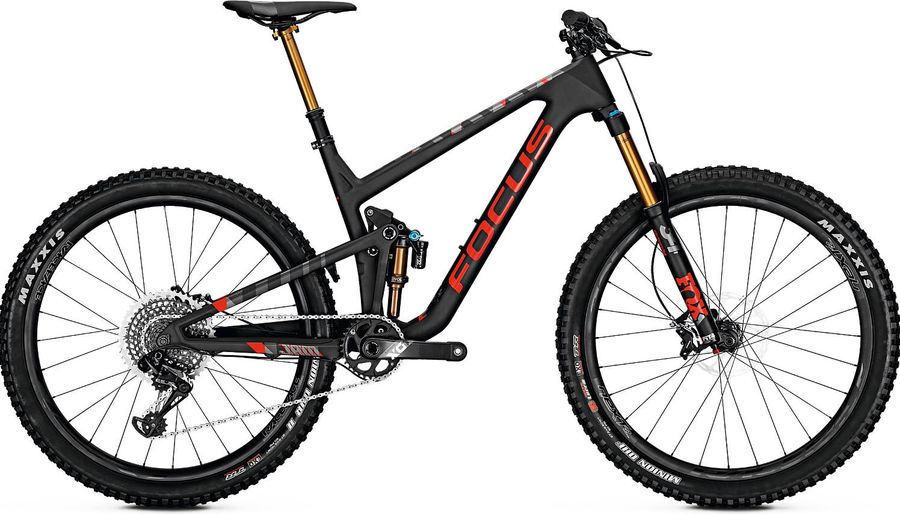

Focus JAM C SL 27 2018

About the Focus JAM C SL 27 2018

The Focus JAM C SL 27 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain. Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Focus JAM C SL 27 2018 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
RaceFace Turbine R, aluminium, 35,0mm
Seatpost
Fox Transfer Factory 31,6mm, internal, 1by remote
Handlebar
RaceFace Next 35mm, carbon, riserbar, 760mm
Brakes
SRAM Guide Ultimate Hydraulic 360 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Arctic Grey Anodized, Black Anodized
Model
DB-GDE-ULT-A1
Name
Guide Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
360
Drivetrain
Shifter
SRAM X01 Eagle
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
MAX technology Carbon frame, PF30 BB, 148x12 mm through axle, internal cable routing, Post Mount 180 mm
Front suspension
Fox 34 Float Factory
Rear suspension
Fox Float DPX2 Factory
Wheels
Rims
RaceFace Next R, 584-30, 148x12 mm / 110x15 mm
Tires
Minion DHF 2.5 3C/TR/ EXO, foldable

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
440,0
470,0
500,0
b
Seat tube angle
74,5º
74,0º
74,0º
74,0º
c
Top tube length
569,0
591,0
616,0
641,0
d
Head tube length
110,0
110,0
135,0
155,0
e
Head tube angle
66,8º
66,3º
66,3º
66,3º
f
Rake
44,0
42,0
42,0
42,0
g
Trail
110,0
120,0
120,0
120,0
h
Wheelbase
1125,0
1149,0
1179,0
1207,0
i
Chainstay length
418,0
418,0
418,0
418,0
j
Bottom bracket drop
16,0
12,0
12,0
12,0
k
Stack height
575,0
588,0
613,0
630,0
l
Reach
408,0
423,0
443,0
463,0
m
Standover height
-
-
-
-
x
Bottom bracket height
358,0
362,0
362,0
362,0
y
Front center
707,0
731,0
761,0
789,0
