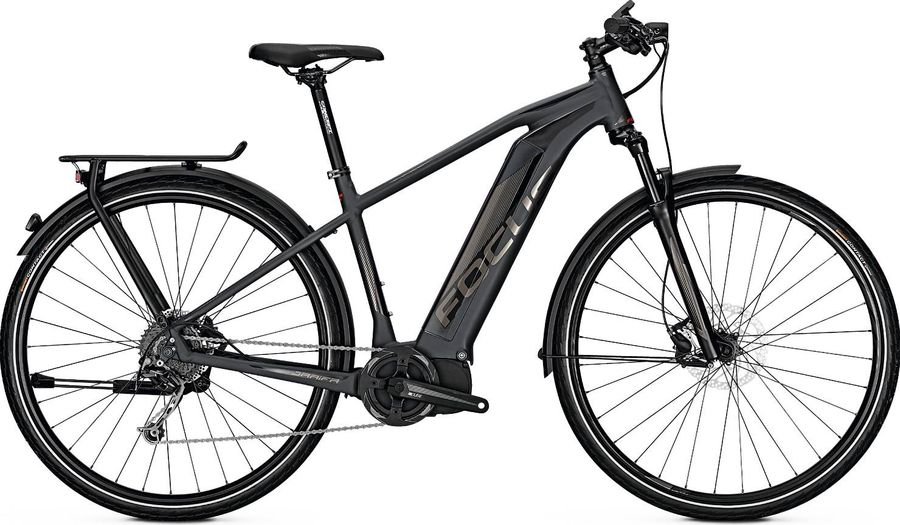

Focus JARIFA² iStreet 2018
The Focus JARIFA² iStreet 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
80mm
About the Focus JARIFA² iStreet 2018
The Focus JARIFA² iStreet 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain. Its features include internal routing e hydraulic disc brakes.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Remote
|
Dayton
|
|---|
|
Steam
|
BBB, aluminium, 90mm
|
|---|---|
|
Battery
|
17 Ah
|
|
Seatpost
|
BBB-BSP-20, 31.6 mm, 350mm
|
|
Handlebar
|
BBB, aluminium, flatbar, 720mm, rise: 0mm, backsweep: 9degree
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Motor
|
Impulse Evo RS, 80 Nm, 250 W
|
|---|---|
|
Shifter
|
Shimano Altus 2000
|
|
Rear derailleur
|
Shimano Deore RD-M592
SGS
9s
|
|
|
|
|
Frame
|
6061 aluminium, 142x12 mm through axle, RAT Evo technology, internal cable routing, post mount 160 mm
|
|---|---|
|
Front suspension
|
RST Pulse
|
|
Rims
|
Rodi Ready 27, 662-27, Shimano Deore, 142x12 mm / 9 mm QR
|
|---|---|
|
Tires
|
Continental Contact II
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
430,0
|
460,0
|
500,0
|
540,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
573,0
|
586,0
|
603,0
|
619,0
|
|
d
Head tube length
|
110,0
|
120,0
|
130,0
|
150,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
89,0
|
88,0
|
89,0
|
89,0
|
|
h
Wheelbase
|
1110,0
|
1124,0
|
1141,0
|
1159,0
|
|
i
Chainstay length
|
468,0
|
468,0
|
468,0
|
468,0
|
|
j
Bottom bracket drop
|
70,0
|
70,0
|
70,0
|
70,0
|
|
k
Stack height
|
628,0
|
637,0
|
647,0
|
666,0
|
|
l
Reach
|
392,0
|
402,0
|
416,0
|
427,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
304,0
|
304,0
|
|
y
Front center
|
651,0
|
665,0
|
682,0
|
700,0
|
