Focus O1E 8.7 2020

MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,6 kg
Front travel
120mm
Rear travel
38mm

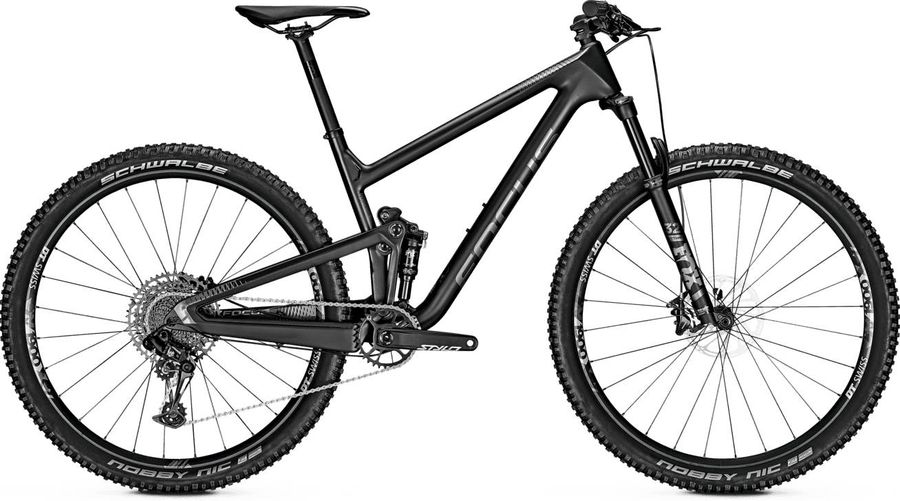

Focus O1E 8.7 2020

About the Focus O1E 8.7 2020

The Focus O1E 8.7 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain. Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 12,6 kg.

Features

The Focus O1E 8.7 2020 has 5 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
FOCUS Locker SL
Components
Steam
BBB Jumper BHS-138, 31.8 mm
Saddle
FOCUS Race SL
Headset
Acros AIX-322, tapered, IS 42/286-IS52/40
Seatpost
BBB Deluxe, Aluminium, 31,6mm, 350mm
Handlebar
Aluminium, riserbar, 760mm
Brake lever
SRAM LEVEL TL
Drivetrain
Crankset
Truvativ Stylo 6K
Shifter
SRAM NX Eagle, 12-speed
Bottom bracket
SRAM DUB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Carbon frame, F.O.L.D. kinematic, PF30 BB, 148x12 mm thru axle, internal cable routing, Post Mount 160 mm
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 32 Rhythm
Wheels
Rims
DT Swiss M1900, 622-25, 15x110 MM / 12x148 MM
Tires
Schwalbe Nobby Nic Performance Addix 2.35

Geometry

Size SM MD LG
a
Seat tube length
422,0
445,8
482,2
b
Seat tube angle
74,2º
74,2º
74,2º
c
Top tube length
594,0
610,0
630,0
d
Head tube length
100,0
112,0
125,0
e
Head tube angle
68,4º
68,4º
68,4º
f
Rake
51,0
51,0
51,0
g
Trail
92,0
92,0
93,0
h
Wheelbase
1144,0
1163,0
1184,0
i
Chainstay length
453,0
453,0
453,0
j
Bottom bracket drop
31,5
31,5
31,5
k
Stack height
609,0
616,0
633,0
l
Reach
415,0
431,0
446,0
m
Standover height
-
-
-
x
Bottom bracket height
343,0
343,0
343,0
y
Front center
693,0
712,0
733,0
