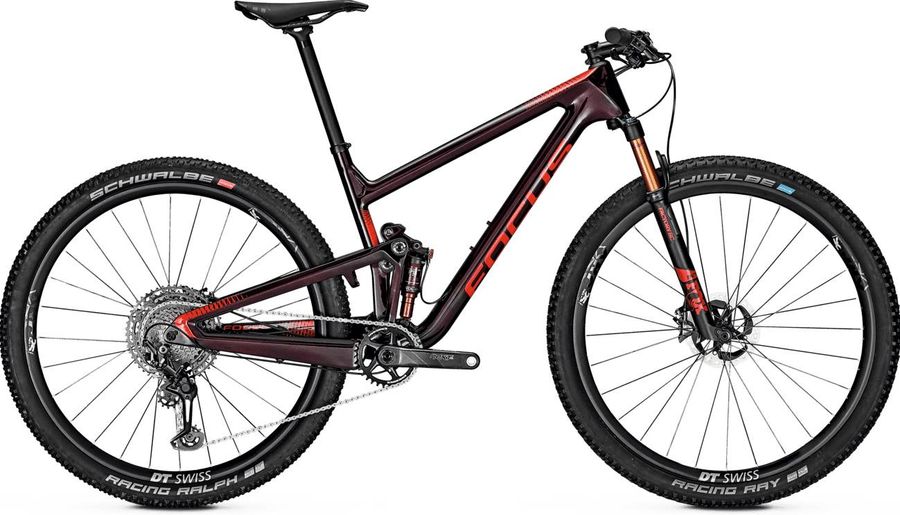

Focus O1E 9.9 2020

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
10,8 kg
Front travel
100mm
Rear travel
100mm
Focus O1E 9.9 2020

About the Focus O1E 9.9 2020

The Focus O1E 9.9 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain. Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 10,8 kg.

Features

The Focus O1E 9.9 2020 has 6 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Velo VLG-975
Components
Steam
BBB Race, aluminium, 31.8 mm
Saddle
Prologo Scratch X8, 7x9mm carbon rail
Headset
Acros AIX-322, tapered, IS 42/286-IS52/40
Seatpost
BBB, carbon, 31,6mm
Handlebar
BBB, carbon, flatbar, 720mm, rise: 0mm, backsweep: 9degree
Brake lever
Shimano XTR M9100
Drivetrain
Crankset
RaceFace Next SL G5, carbon
Shifter
Shimano XTR 9100, 12-speed
Bottom bracket
RaceFace PF30 73mm
Rear derailleur
Shimano XTR RD-M9100-GS 237 g GS 12s
Average weight (g)
237
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
45T
Lower pulley min
45T
Model
RD-M9100-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
35T
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Frameset
Frame
MAX technology Carbon frame, 100 mm F.O.L.D. kinematic, PF30 BB, 148x12 mm thru axle, internal cable routing, Post Mount 160 mm
Front suspension
Fox 32 Float Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
DT Swiss XRC1200, carbon, 622-25
Tires
Schwalbe Racing Ralph Evo Addix Speed 2.25

Geometry

Size SM MD LG
a
Seat tube length
421,0
450,0
480,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
589,0
606,0
626,0
d
Head tube length
100,0
112,0
125,0
e
Head tube angle
69,2º
69,2º
69,2º
f
Rake
51,0
51,0
51,0
g
Trail
101,0
101,0
101,0
h
Wheelbase
1124,0
1142,0
1163,0
i
Chainstay length
452,0
452,0
452,0
j
Bottom bracket drop
38,0
38,0
38,0
k
Stack height
600,0
607,0
623,0
l
Reach
424,0
439,0
454,0
m
Standover height
-
-
-
x
Bottom bracket height
336,0
336,0
336,0
y
Front center
675,0
693,0
714,0
