BikeWise

Focus O1E FACTORY 2018

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
700c
Suspension type
Full suspension
Front travel
120mm

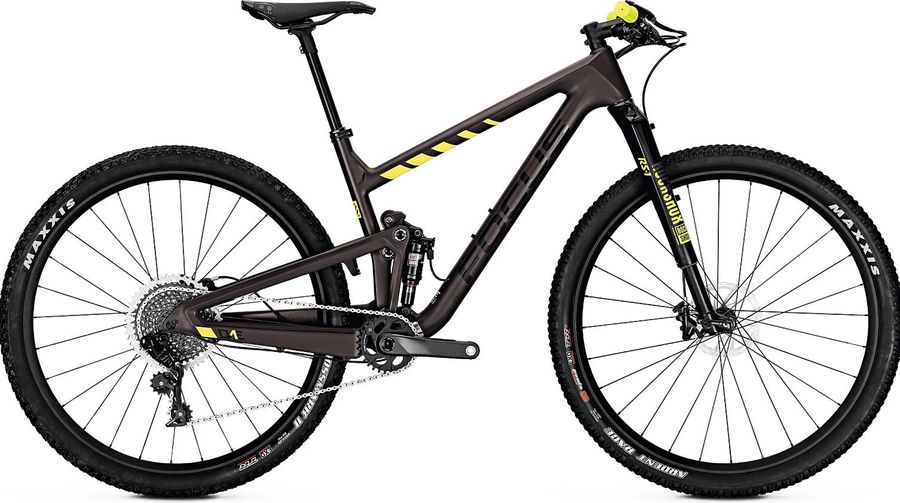

Focus O1E FACTORY 2018

About the Focus O1E FACTORY 2018

The Focus O1E FACTORY 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain. Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Focus O1E FACTORY 2018 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
BBB, aluminium, 31.8mm
Seatpost
KindShock Zeta, 31,6mm, 437 mm, 50mm travel, remote for 1by only
Handlebar
BBB, carbon, flatbar, 720mm, rise: 0mm, backsweep: 9degree
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Shifter
SRAM GX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon frame, 100 mm F.O.L.D. kinematic, PF30 BB, 148x12 mm through axle, internal cable routing, Post Mount 160 mm
Rear suspension
RockShox Monarch XX 275 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
320, 380, 430
Model
RS-MNR-XX-C2
Name
Monarch XX
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
275
Front suspension
RockShox RS-1 RLC Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RS1-RLC-A1
Name
RS-1 RLC
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss M1650, 622-25, 148x12 mm / 110x15 mm, predictive steering
Tires
Ardent Race 2.2 TR/ EXO, foldable

Geometry

Size SM MD LG
a
Seat tube length
422,0
445,8
482,2
b
Seat tube angle
74,2º
74,2º
74,2º
c
Top tube length
594,0
610,0
630,0
d
Head tube length
100,0
112,0
125,0
e
Head tube angle
68,4º
68,4º
68,4º
f
Rake
51,0
51,0
51,0
g
Trail
92,0
92,0
93,0
h
Wheelbase
1144,0
1163,0
1184,0
i
Chainstay length
453,0
453,0
453,0
j
Bottom bracket drop
31,5
31,5
31,5
k
Stack height
609,0
616,0
633,0
l
Reach
415,0
431,0
446,0
m
Standover height
-
-
-
x
Bottom bracket height
-
-
-
y
Front center
693,0
712,0
733,0
