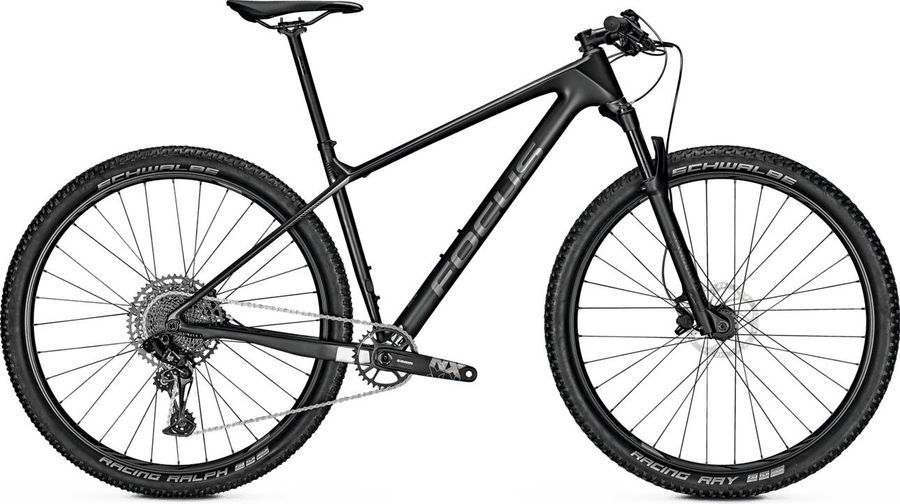

Focus RAVEN 8.6 2021
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
11,95 kg
Front travel
100mm
About the Focus RAVEN 8.6 2021
The Focus RAVEN 8.6 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain. Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 11,95 kg.
Features
Internal routing
More info
Internal routing
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
FOCUS SL
|
|---|
|
Steam
|
BBB Rider BHS-109 Deluxe, 31.8mm, 7degree
|
|---|---|
|
Saddle
|
FOCUS Race SL
|
|
Headset
|
Acros AIX-322, tapered, IS 42/286-IS52/40
|
|
Seatpost
|
BBB Deluxe, Aluminium, 27,2mm, 350mm
|
|
Handlebar
|
BBB Horizon BHB-108, aluminium, flatbar, 720mm, backsweep: 9degree
|
|
Brake lever
|
Magura MT2
|
|
Brakes
|
Magura MT2
|
|
Crankset
|
SRAM NX Eagle
|
|---|---|
|
Shifter
|
SRAM NX Eagle, 12-speed
|
|
Bottom bracket
|
SRAM DUB
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
Carbon frame, PF30 BB, 148x12 mm thru axle, internal cable routing, Post Mount 160 mm
|
|---|---|
|
Front suspension
|
RockShox Judy Gold RL
Solo Air
|
|
|
|
|
Rims
|
Rodi Viper 21
|
|---|---|
|
Tires
|
Schwalbe Racing Ray Performance 2.25
|
|
Rear hub
|
Novatec D162 Disc, 12x148 mm
|
|
Front hub
|
Novatec D041, 15x110 mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
420,0
|
460,0
|
500,0
|
540,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
595,0
|
611,0
|
632,0
|
652,0
|
|
d
Head tube length
|
104,0
|
107,0
|
130,0
|
150,0
|
|
e
Head tube angle
|
69,8º
|
69,8º
|
69,8º
|
69,8º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
91,0
|
96,0
|
90,0
|
91,0
|
|
h
Wheelbase
|
1103,0
|
1119,0
|
1142,0
|
1163,0
|
|
i
Chainstay length
|
438,0
|
443,0
|
438,0
|
438,0
|
|
j
Bottom bracket drop
|
68,0
|
68,0
|
68,0
|
68,0
|
|
k
Stack height
|
623,0
|
626,0
|
647,0
|
666,0
|
|
l
Reach
|
423,0
|
438,0
|
453,0
|
468,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
306,0
|
306,0
|
306,0
|
306,0
|
|
y
Front center
|
674,0
|
685,0
|
713,0
|
734,0
|
