Focus RAVEN 8.8 2019
Groupset
SRAM GX
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

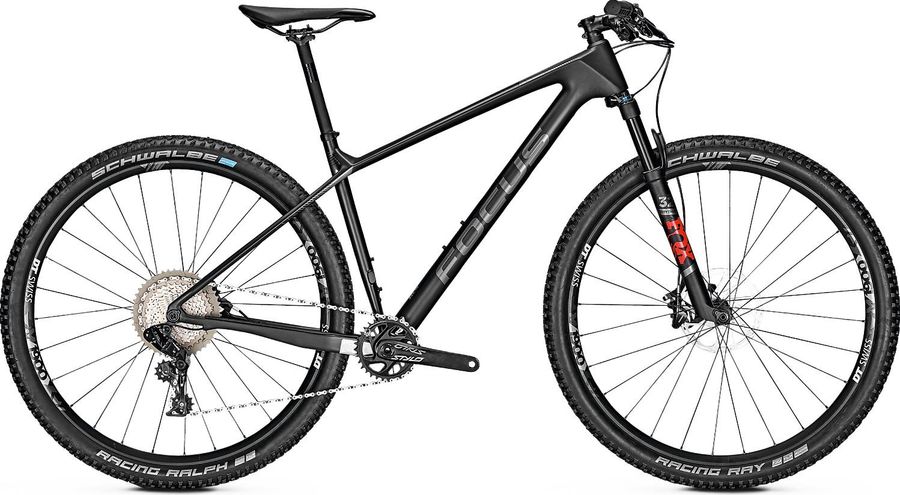

About the Focus RAVEN 8.8 2019
The Focus RAVEN 8.8 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain. Its features include internal routing e hydraulic disc brakes.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
BBB Race, aluminium, 31.8 mm
|
|---|---|
|
Seatpost
|
BBB, aluminium, 27,2 mm
|
|
Handlebar
|
BBB, aluminium, flatbar, 720mm, rise: 0mm, backsweep: 9degree
|
|
Brake lever
|
SRAM LEVEL TL
|
|
Brakes
|
SRAM Level TL
Hydraulic
370 g
|
|
|
|
|
Shifter
|
SRAM GX Eagle
|
|---|---|
|
Rear derailleur
|
SRAM GX
|
|
Frame
|
Carbon frame, PF30 BB, 142x12 mm through axle, internal cable routing, Post Mount 160 mm
|
|---|---|
|
Front suspension
|
Fox 32 Rhythm
|
|
Rims
|
DT Swiss M1900, 622-25
|
|---|---|
|
Tires
|
Schwalbe Racing Ralph Performance 2.25
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
420,0
|
460,0
|
500,0
|
540,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
595,0
|
611,0
|
632,0
|
652,0
|
|
d
Head tube length
|
104,0
|
107,0
|
130,0
|
150,0
|
|
e
Head tube angle
|
69,8º
|
69,8º
|
69,8º
|
69,8º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
91,0
|
91,0
|
90,0
|
91,0
|
|
h
Wheelbase
|
1103,0
|
1119,0
|
1142,0
|
1163,0
|
|
i
Chainstay length
|
438,0
|
438,0
|
438,0
|
438,0
|
|
j
Bottom bracket drop
|
68,0
|
68,0
|
68,0
|
68,0
|
|
k
Stack height
|
623,0
|
626,0
|
647,0
|
666,0
|
|
l
Reach
|
423,0
|
438,0
|
453,0
|
468,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
306,0
|
306,0
|
306,0
|
306,0
|
|
y
Front center
|
674,0
|
690,0
|
713,0
|
734,0
|
