Focus RAVEN 8.8 2020

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
10,75 kg
Front travel
100mm

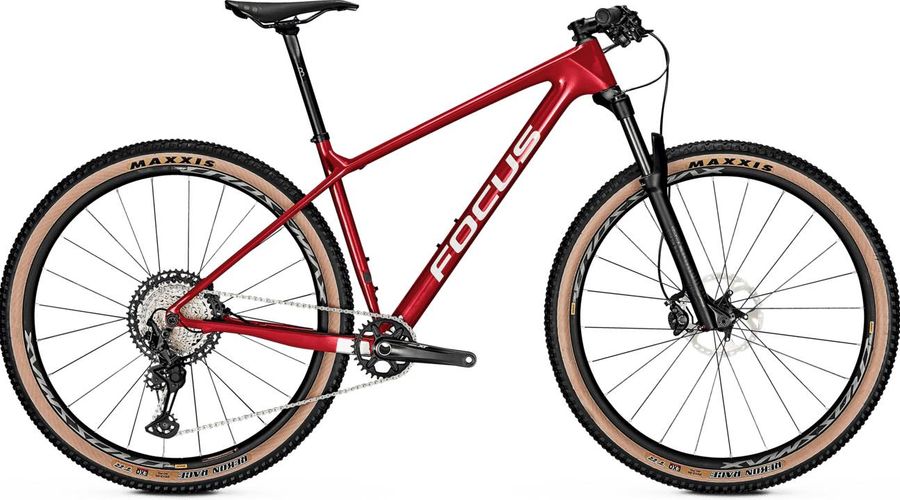

Focus RAVEN 8.8 2020

About the Focus RAVEN 8.8 2020

The Focus RAVEN 8.8 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain. Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 10,75 kg.

Features

The Focus RAVEN 8.8 2020 has 5 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
BBB Python BHG-95
Components
Steam
BBB Rider BHS-109 Deluxe, 31.8mm, 7degree
Saddle
Prologo Scratch X8
Headset
Acros AIX-322, tapered, IS 42/286-IS52/40
Seatpost
BBB FlyPost SP-131, 27,2mm, set-back: 0mm, carbon
Handlebar
BBB Horizon BHB-108, aluminium, flatbar, 720mm, backsweep: 9degree
Brake lever
Shimano BR-M8100
Drivetrain
Crankset
Shimano Deore XT FC-M8100, Hollowtech II
Shifter
Shimano Deore XT M8100, 12-speed
Bottom bracket
Token PF30
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Carbon frame, PF30 BB, 148x12 mm thru axle, internal cable routing, Post Mount 160 mm
Front suspension
RockShox SID Select DebonAir 1671 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RL
fork offset
44mm (29")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-SID-SEL-C1
Name
SID Select
Spring
DebonAir
Travel (mm)
110mm, 120mm
Upper tube type
35mm tapered aluminum
Weight based on
120mm travel W/Maxle Stealth
Weight
1671
Wheel size
29"
Wheels
Rims
Mavic Crossmax, 622-25, 15x110 MM / 12x148 MM
Tires
Maxxis Rekon Race 57-622

Geometry

Size SM MD LG XL
a
Seat tube length
420,0
460,0
500,0
540,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
595,0
611,0
632,0
652,0
d
Head tube length
104,0
107,0
130,0
150,0
e
Head tube angle
69,8º
69,8º
69,8º
69,8º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
91,0
96,0
90,0
91,0
h
Wheelbase
1103,0
1119,0
1142,0
1163,0
i
Chainstay length
438,0
443,0
438,0
438,0
j
Bottom bracket drop
68,0
68,0
68,0
68,0
k
Stack height
623,0
626,0
647,0
666,0
l
Reach
423,0
438,0
453,0
468,0
m
Standover height
-
-
-
-
x
Bottom bracket height
306,0
306,0
306,0
306,0
y
Front center
674,0
685,0
713,0
734,0
