Focus RAVEN MAX SL 2018

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

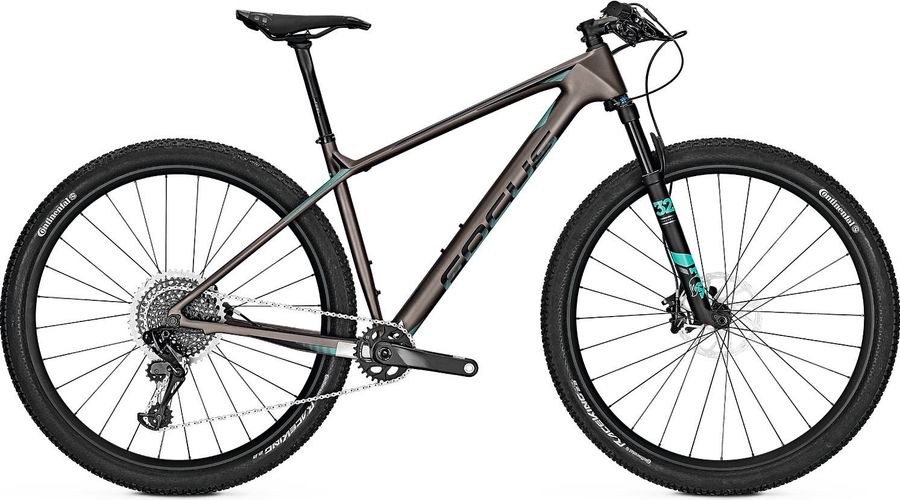

Focus RAVEN MAX SL 2018

About the Focus RAVEN MAX SL 2018

The Focus RAVEN MAX SL 2018 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain. Its features include internal routing, boost 110 , and hydraulic disc brakes.

Features

The Focus RAVEN MAX SL 2018 has 4 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
BBB, aluminium, 31.8mm
Seatpost
BBB, carbon, 27,2 mm, 394 mm
Handlebar
BBB, aluminium, flatbar, 720mm, rise: 0mm, backsweep: 9degree
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Shifter
SRAM X01 Eagle
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
MAX technology Carbon frame, PF30 BB, 142x12 mm through axle, internal cable routing, Post Mount 160 mm
Front suspension
Fox 32 Float Performance SC
Wheels
Rims
DT Swiss M1650, 622-25, 142x12 mm / 110x15 mm
Tires
Continental Race King 2.2 RS, foldable

Geometry

Size SM MD LG XL
a
Seat tube length
420,0
460,0
500,0
540,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
595,0
611,0
632,0
652,0
d
Head tube length
104,0
107,0
130,0
150,0
e
Head tube angle
69,8º
69,8º
69,8º
69,8º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
91,0
91,0
90,0
91,0
h
Wheelbase
1103,0
1119,0
1142,0
1163,0
i
Chainstay length
438,0
438,0
438,0
438,0
j
Bottom bracket drop
68,0
68,0
68,0
68,0
k
Stack height
623,0
626,0
647,0
666,0
l
Reach
423,0
438,0
453,0
468,0
m
Standover height
-
-
-
-
x
Bottom bracket height
306,0
306,0
306,0
306,0
y
Front center
674,0
690,0
713,0
734,0
