Focus SAM² 6.7 2020

E-Bike
MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,7 kg
Front travel
170mm
Rear travel
170mm

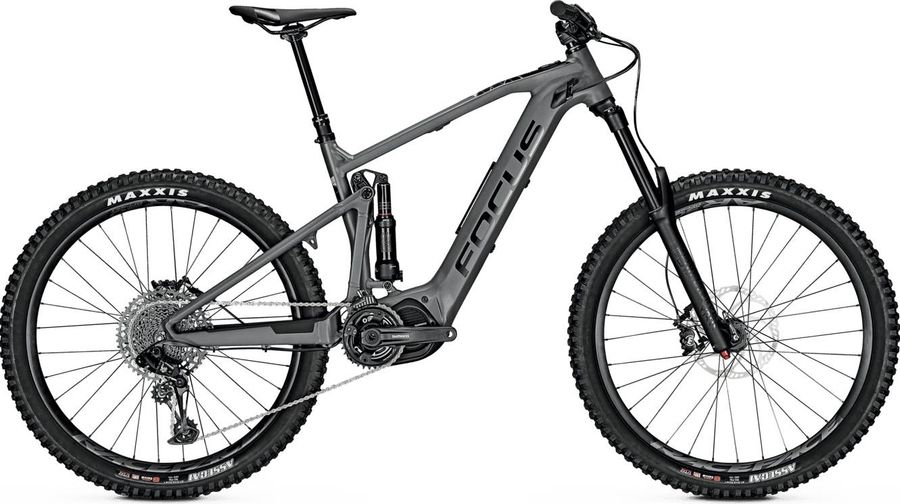

Focus SAM² 6.7 2020

About the Focus SAM² 6.7 2020

The Focus SAM² 6.7 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain. Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 24,7 kg.

Features

The Focus SAM² 6.7 2020 has 6 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
FOCUS Locker SL
Remote
Shimano Steps E7000, black/white LCD display, walk assist, bluetooth
Components
Steam
Aluminium, 40mm
Saddle
FOCUS Trail SL
Battery
378 Wh
Headset
Acros AZX-220 R5, ZS44/286 - ZS56/40
Seatpost
Kind Shock E30i, 31,6mm
Handlebar
BBB Ascension BHB-110-Di2, aluminium, riserbar, 780mm, rise: 20mm, backsweep: 9degree
Brake lever
Magura MT5
Drivetrain
Crankset
Shimano FC-E8000
Motor
Shimano Steps E8000, 70 Nm, 250 W
Shifter
SRAM NX Eagle, 12-speed
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 180 mm
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Wheels
Rims
RaceFace AR30 Offset
Tires
Maxxis Assegai 2.5 3C MaxxTerra Exo+ TR
Rear hub
Novatec D162 Disc, 12x148 mm
Front hub
Novatec D041, 15x110 mm thru axle

Geometry

Size SM MD LG
a
Seat tube length
420,0
440,0
480,0
b
Seat tube angle
75,0º
75,0º
75,0º
c
Top tube length
588,0
607,0
627,0
d
Head tube length
118,0
118,0
138,0
e
Head tube angle
65,0º
65,0º
65,0º
f
Rake
42,0
42,0
42,0
g
Trail
127,0
121,0
122,0
h
Wheelbase
1199,0
1220,0
1243,0
i
Chainstay length
458,0
458,0
458,0
j
Bottom bracket drop
12,0
12,0
12,0
k
Stack height
610,0
610,0
628,0
l
Reach
428,0
443,0
458,0
m
Standover height
-
-
-
x
Bottom bracket height
343,0
343,0
343,0
y
Front center
741,0
762,0
785,0
