Focus SAM² 6.8 2021

E-Bike
MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
25,95 kg
Front travel
170mm
Rear travel
170mm

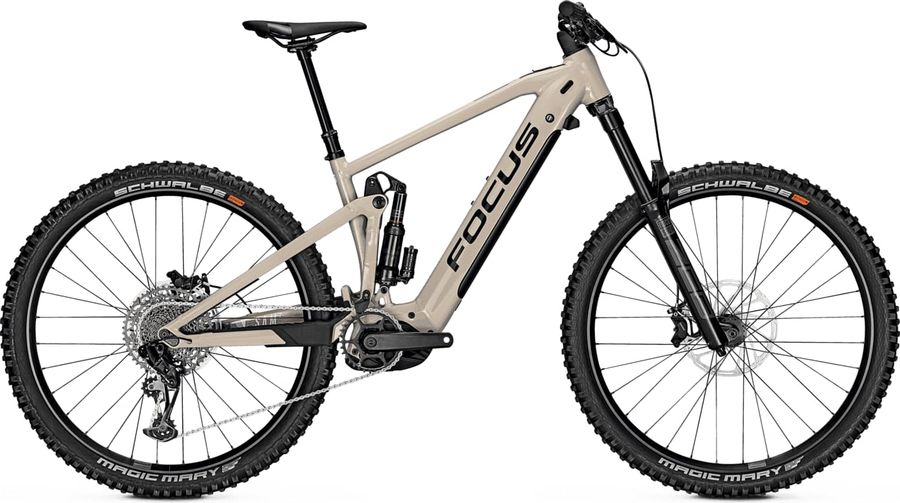

Focus SAM² 6.8 2021

About the Focus SAM² 6.8 2021

The Focus SAM² 6.8 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain. Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 25,95 kg.

Features

The Focus SAM² 6.8 2021 has 6 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
FOCUS Locker SL
Remote
Bosch Purion
Components
Steam
FOCUS C.I.S. integrated, 50 mm, 0 degrees, 35 mm, aluminium
Saddle
FOCUS Trail SL
Battery
625 Wh
Headset
Acros AZX-212 AH [1-1/8", tapered, 44/286-ZS56/40]
Seatpost
Kind Shock RAGE I, 31,6mm
Handlebar
FOCUS Trail, aluminium, riserbar, 780mm, rise: 30mm, backsweep: 9 degrees
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Samox EC40 ISIS
Motor
Bosch Performance CX Gen4, 85 Nm, 250 W
Shifter
SRAM GX Eagle
Bottom bracket
Integraded in Drive Unit
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 203 mm
Rear suspension
RockShox Super Deluxe Select 440 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-SEL-B2
Name
Super Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
440
Front suspension
RockShox ZEB DebonAir, Dual Position Air 2231 g
Color
Diffusion Black, Gloss Black
Damper type
Charger R
fork offset
38mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-ZEB-R-A1
Name
ZEB
Spring
DebonAir, Dual Position Air
Travel (mm)
150mm, 160mm, 170mm, 180mm, 190mm
Upper tube type
38mm aluminum
Weight based on
29" Maxle Stealth 190mm Travel 1.5" Taper Steerer
Weight
2231
Wheel size
27.5", 29"
Wheels
Rims
RODI TRYP30 FOCUS, eyelets
Tires
Schwalbe Magic Mary 2.6 Super Trail Soft
Rear hub
Novatec D162 Disc, 12x148 mm
Front hub
Novatec D041, 15x110 mm thru axle

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
420,0
450,0
490,0
b
Seat tube angle
75,8º
75,8º
75,8º
75,8º
c
Top tube length
580,0
601,0
635,0
669,0
d
Head tube length
110,0
115,0
130,0
150,0
e
Head tube angle
64,8º
64,8º
64,8º
64,8º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
131,0
133,0
132,0
131,0
h
Wheelbase
1188,0
1209,0
1246,0
1284,0
i
Chainstay length
423,0
423,0
423,0
423,0
j
Bottom bracket drop
10,0
10,0
10,0
10,0
k
Stack height
624,0
629,0
642,0
660,0
l
Reach
421,0
441,0
471,0
500,0
m
Standover height
-
-
-
-
x
Bottom bracket height
364,0
364,0
364,0
364,0
y
Front center
765,0
786,0
823,0
861,0
