Focus SAM C SL 2018

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm

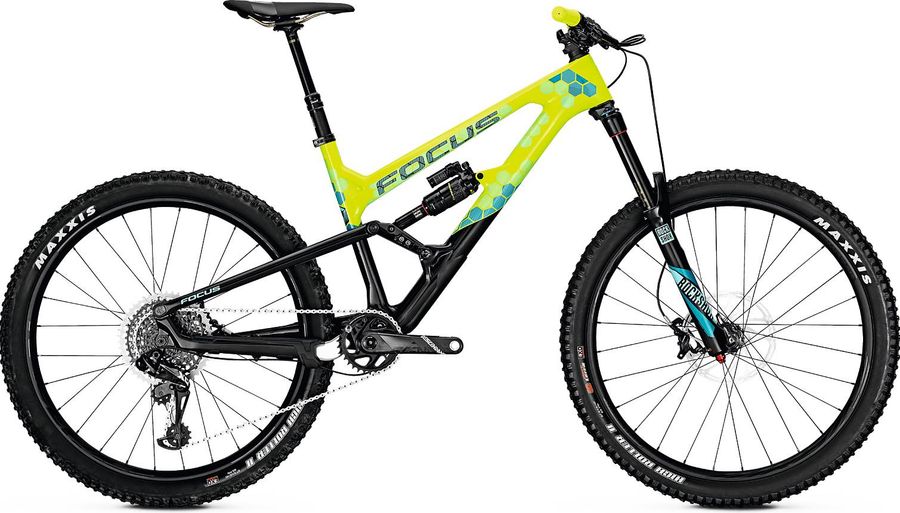

Focus SAM C SL 2018

About the Focus SAM C SL 2018

The Focus SAM C SL 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain. Its features include internal routing, dropper seatpost, and hydraulic disc brakes.

Features

The Focus SAM C SL 2018 has 3 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
BBB Jumper BHS-137, 65mm
Seatpost
RockShox Reverb Stealth 31.6
Handlebar
BBB Ascension BHB-110, aluminium, riserbar, 780mm, rise: 20mm, backsweep: 9degree
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Shifter
SRAM X01 Eagle
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon frame, PF30 BB, 142x12 through axle, internal cable routing, Post Mount 180 mm
Rear suspension
RockShox Monarch Plus RC3
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, L3, M
Eye to eye stroke
190x51, 200x51, 200x57, 216x63
Model
RS-MNRP-RC3-B4
Name
Monarch Plus RC3
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Front suspension
RockShox Lyrik RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger 2
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-RC-C2
Name
Lyrik RC
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
RaceFace Turbine R30, 584-30, 142x12 mm / 100x15 mm
Tires
Maxxis High Roller II 2.4 3C EXO TR

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
480,0
520,0
b
Seat tube angle
74,7º
74,7º
74,7º
74,7º
c
Top tube length
576,0
591,0
611,0
631,0
d
Head tube length
100,0
105,0
120,0
135,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
113,0
113,0
113,0
113,0
h
Wheelbase
1162,6
1178,5
1201,0
1223,5
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
8,0
8,0
8,0
8,0
k
Stack height
587,0
591,0
605,2
618,9
l
Reach
419,5
433,3
449,8
466,2
m
Standover height
-
-
-
-
x
Bottom bracket height
347,0
347,0
347,0
347,0
y
Front center
733,0
749,0
771,0
794,0
