BikeWise

Focus THRON² 6.9 2020

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
23,5 kg
Front travel
130mm
Rear travel
130mm

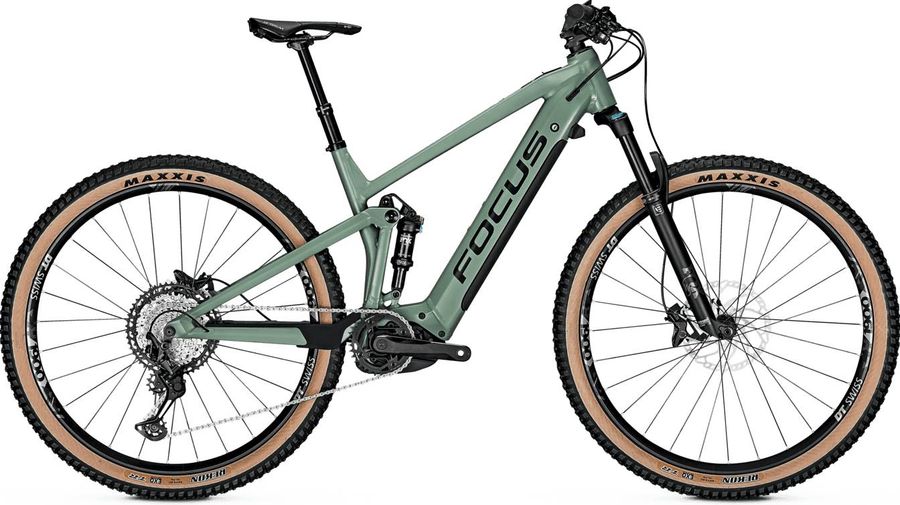

Focus THRON² 6.9 2020

About the Focus THRON² 6.9 2020

The Focus THRON² 6.9 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 23,5 kg.

Features

The Focus THRON² 6.9 2020 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
FOCUS Ergo Comfort
Remote
Bosch Kiox
Components
Steam
BBB Jumper BHS-137, 31.8mm
Saddle
Proxim W450
Battery
625 Wh
Headset
VP Components, ZS56/28,6-ZS56/40
Seatpost
Kind Shock E30i, 31,6mm
Handlebar
BBB Ascension BHB-110, aluminium, riserbar, 780mm, rise: 20mm, backsweep: 9degree
Brake lever
Shimano BR-MT520
Drivetrain
Crankset
FSA CK-320, aluminium
Motor
Bosch Performance CX Gen4, 75 Nm, 250 W
Shifter
Shimano Deore XT M8100, 12-speed
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
7005 hydroformed aluminium, 3D forging, 130mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 180 mmm
Front suspension
Fox 34 Float Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
DT Swiss H1900, 622-30, 148x12 mm / 110x15 mm
Tires
Maxxis Rekon 2.6 3C EXO TR

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
470,0
500,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
584,0
603,0
627,0
651,0
d
Head tube length
115,0
130,0
147,0
163,0
e
Head tube angle
66,8º
66,8º
66,8º
66,8º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
105,0
105,0
105,0
105,0
h
Wheelbase
1175,4
1196,3
1223,0
1249,3
i
Chainstay length
455,0
455,0
455,0
455,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
609,7
623,5
639,1
653,8
l
Reach
415,0
430,0
450,0
470,0
m
Standover height
-
-
-
-
x
Bottom bracket height
349,0
349,0
349,0
349,0
y
Front center
722,0
742,0
769,0
795,0
