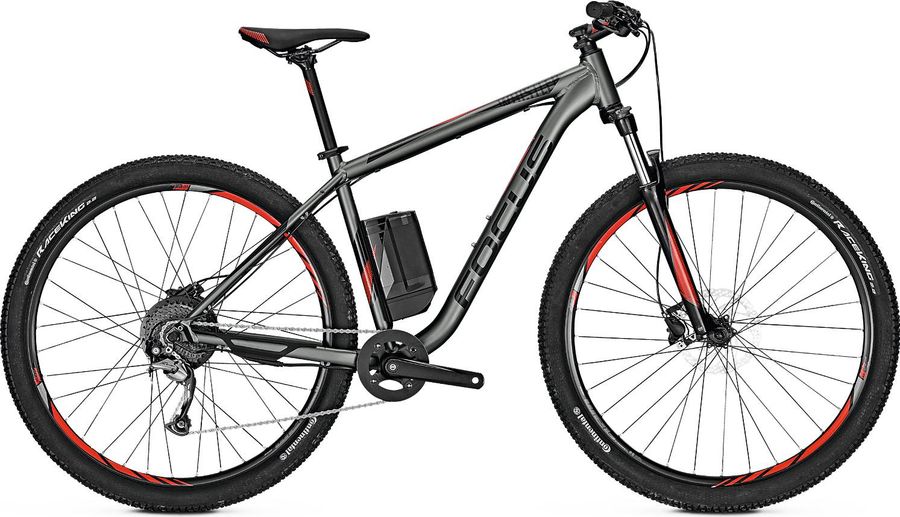

Focus WHISTLER² 2018
The Focus WHISTLER² 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
About the Focus WHISTLER² 2018
The Focus WHISTLER² 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain. Its features include hydraulic disc brakes e remote lockout.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Steam
|
aluminium, 31,8 mm, 80 mm
|
|---|---|
|
Battery
|
7 Ah
|
|
Seatpost
|
aluminium, 27,2mm
|
|
Handlebar
|
aluminium, riserbar, 700mm
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Motor
|
Groove Next, 250 W
|
|---|---|
|
Shifter
|
Shimano Altus 2000
|
|
Rear derailleur
|
Shimano Altus RD-M2000
SGS
9s
|
|
|
|
|
Frame
|
6061 aluminium, BSA BB, international disc brake standard
|
|---|---|
|
Front suspension
|
SR Suntour XCM-RL
|
|
Rims
|
Rodi Viper 21, 27,5" 584-21, 29" 662-21, Shimano Deore, 9 mm QR / 9 mm QR
|
|---|---|
|
Tires
|
Continental Race King 2.2 SL
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
460,0
|
500,0
|
540,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
550,0
|
563,0
|
584,0
|
605,0
|
620,0
|
|
d
Head tube length
|
110,0
|
120,0
|
110,0
|
130,0
|
150,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
42,0
|
42,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
91,0
|
91,0
|
-9840,0
|
80,0
|
82,0
|
|
h
Wheelbase
|
1075,0
|
1089,0
|
-
|
1126,0
|
1142,0
|
|
i
Chainstay length
|
445,0
|
445,0
|
445,0
|
445,0
|
445,0
|
|
j
Bottom bracket drop
|
48,0
|
48,0
|
62,0
|
62,0
|
62,0
|
|
k
Stack height
|
599,0
|
608,0
|
634,0
|
653,0
|
672,0
|
|
l
Reach
|
372,0
|
382,0
|
401,0
|
417,0
|
427,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
307,0
|
307,0
|
293,0
|
293,0
|
293,0
|
|
y
Front center
|
634,0
|
648,0
|
10582,0
|
688,0
|
704,0
|
