Focus WHISTLER 3.5 2020

MTB Cross Country
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,9 kg
Front travel
100mm

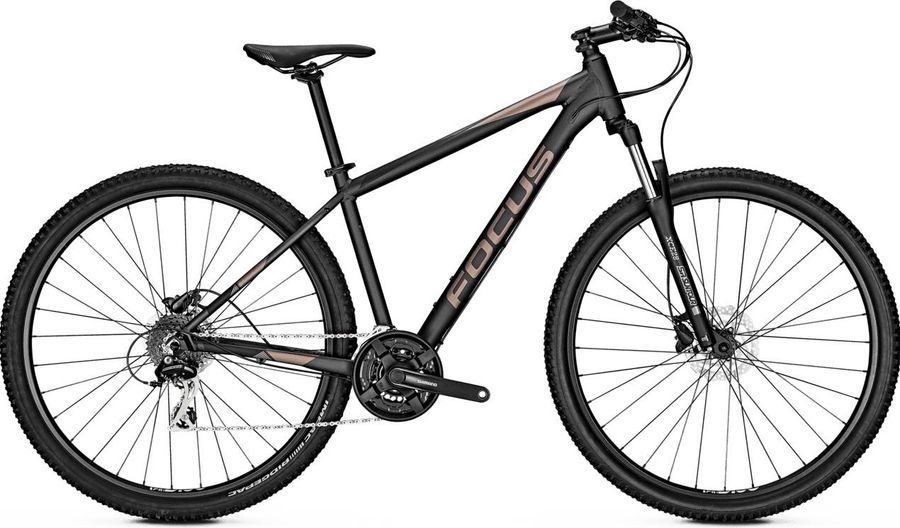

Focus WHISTLER 3.5 2020

About the Focus WHISTLER 3.5 2020

The Focus WHISTLER 3.5 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain. Its features include hydraulic disc brakes. The bike weighs approximately 14,9 kg.

Features

The Focus WHISTLER 3.5 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
FOCUS SL
Components
Steam
aluminium, 31.8mm
Saddle
FOCUS Sport
Headset
VP Components
Seatpost
Alloy, 27,2 mm
Handlebar
aluminium, riserbar, 720mm
Brake lever
Shimano MT200
Drivetrain
Crankset
Shimano TY301
Shifter
Shimano ST-EF505
Bottom bracket
BSA
Front derailleur
Shimano TY700
Chain
KMC X8
Cassette
Shimano Altus CS-HG200-7 HG
Combination names
12-28T
12-32T
Compatible chain
IG/HG
Lock ring finish
Painted
Lock ring material
Steel
Model
CS-HG200-7
Steel gear finish
Phosphate coated
Steel gear pieces
7
Type
HG
Rear derailleur
Shimano Acera RD-M360 SGS 8/7s
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 8/7-speed
Lower pulley max
34T
Lower pulley min
28T
Model
RD-M360-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
Pulley teeth
13/13T
Pulley cage
SGS
Speeds
8/7
Upper pulley max
14T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
6061 aluminium, BSA BB, international disc brake standard
Front suspension
SR Suntour XCT 30
Wheels
Rims
Schürmann YAK 21
Tires
Impac Ridgepac 2.1
Rear hub
Shimano TX505, QR
Front hub
Shimano TX505, QR

Geometry

Size XS XS SM SM MD MD LG LG XL XL
a
Seat tube length
360,0
360,0
420,0
420,0
460,0
460,0
500,0
500,0
540,0
540,0
b
Seat tube angle
73,5º
73,5º
74,0º
74,0º
74,0º
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
544,0
544,0
564,0
564,0
577,0
577,0
597,0
597,0
613,0
613,0
d
Head tube length
110,0
110,0
100,0
100,0
110,0
110,0
130,0
130,0
150,0
150,0
e
Head tube angle
69,0º
69,0º
70,0º
70,0º
70,0º
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
g
Trail
100,0
100,0
93,0
93,0
93,0
93,0
93,0
93,0
94,0
94,0
h
Wheelbase
1048,0
1048,0
1075,0
1075,0
1089,0
1089,0
1111,0
1111,0
1127,0
1127,0
i
Chainstay length
424,0
424,0
441,0
441,0
441,0
441,0
441,0
441,0
441,0
441,0
j
Bottom bracket drop
48,0
48,0
62,0
62,0
62,0
62,0
62,0
62,0
62,0
62,0
k
Stack height
584,0
584,0
606,0
606,0
616,0
616,0
634,0
634,0
654,0
654,0
l
Reach
369,0
369,0
389,0
389,0
399,0
399,0
414,0
414,0
424,0
424,0
m
Standover height
-
-
-
-
-
-
-
-
-
-
x
Bottom bracket height
326,0
326,0
312,0
312,0
312,0
312,0
312,0
312,0
312,0
312,0
y
Front center
629,0
629,0
641,0
641,0
655,0
655,0
677,0
677,0
693,0
693,0
