BikeWise

Focus WHISTLER 3.7 2020

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,4 kg

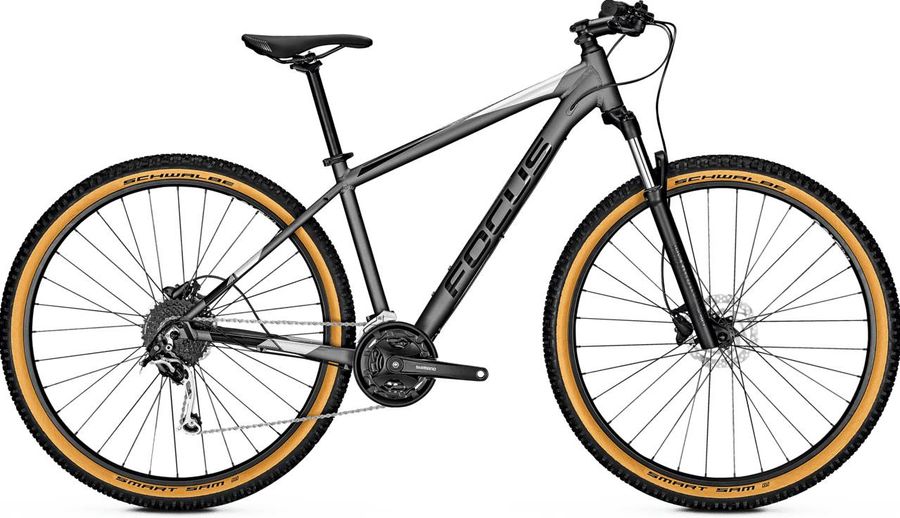

Focus WHISTLER 3.7 2020

About the Focus WHISTLER 3.7 2020

The Focus WHISTLER 3.7 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include hydraulic disc brakes. The bike weighs approximately 14,4 kg.

Features

The Focus WHISTLER 3.7 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
FOCUS SL
Components
Steam
aluminium, 31.8mm
Saddle
FOCUS Sport
Headset
VP Components
Seatpost
Alloy, 27,2 mm
Handlebar
aluminium, riserbar, 720mm
Brake lever
Shimano MT200
Drivetrain
Crankset
Shimano MT101
Shifter
Shimano Altus M2010
Bottom bracket
BSA
Front derailleur
Shimano Altus M2000
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Chain
KMC X9
Rear derailleur
Shimano Deore XT RD-M772
Frameset
Frame
6061 aluminium, BSA BB, international disc brake standard
Front suspension
RockShox XC30 TK Coil
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-XC30-TK-B4
Name
XC30 TK
Spring
Coil
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Schuermann YAK19
Tires
Schwalbe Smart Sam 2.25
Rear hub
Shimano TX505, QR
Front hub
Shimano TX505, QR

Geometry

Size XS XS SM SM MD MD LG LG XL XL
a
Seat tube length
360,0
360,0
400,0
400,0
460,0
460,0
500,0
500,0
540,0
540,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
74,0º
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
544,0
544,0
556,0
556,0
577,0
577,0
597,0
597,0
613,0
613,0
d
Head tube length
110,0
110,0
120,0
120,0
110,0
110,0
130,0
130,0
150,0
150,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
70,0º
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
g
Trail
100,0
100,0
100,0
100,0
93,0
93,0
93,0
93,0
94,0
94,0
h
Wheelbase
1048,0
1048,0
1062,0
1062,0
1089,0
1089,0
1111,0
1111,0
1127,0
1127,0
i
Chainstay length
424,0
424,0
424,0
424,0
441,0
441,0
441,0
441,0
441,0
441,0
j
Bottom bracket drop
48,0
48,0
48,0
48,0
62,0
62,0
62,0
62,0
62,0
62,0
k
Stack height
584,0
584,0
594,0
594,0
616,0
616,0
634,0
634,0
654,0
654,0
l
Reach
369,0
369,0
379,0
379,0
399,0
399,0
414,0
414,0
424,0
424,0
m
Standover height
-
-
-
-
-
-
-
-
-
-
x
Bottom bracket height
326,0
326,0
326,0
326,0
312,0
312,0
312,0
312,0
312,0
312,0
y
Front center
629,0
629,0
642,0
642,0
655,0
655,0
677,0
677,0
693,0
693,0
