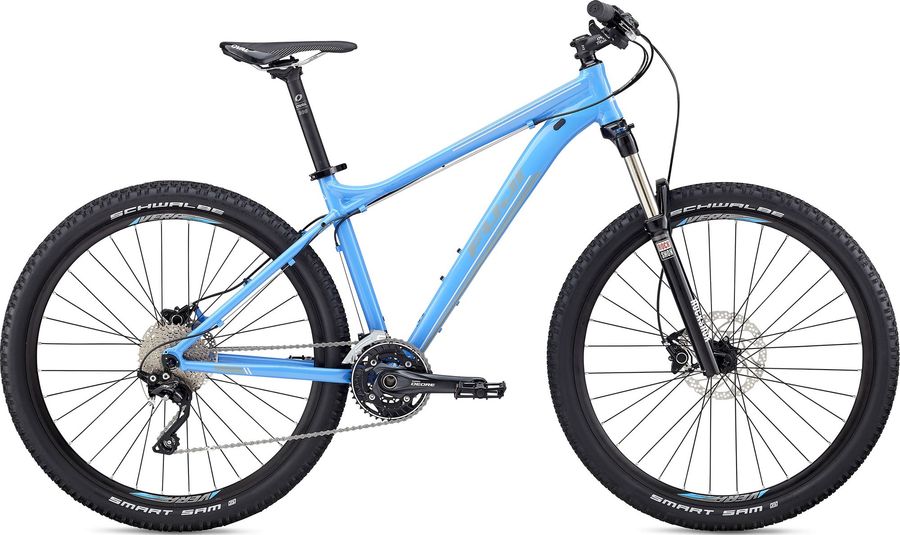

Fuji Addy 27.5 1.1 2018
The Fuji Addy 27.5 1.1 2018 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,43 kg
Front travel
100mm
About the Fuji Addy 27.5 1.1 2018
The Fuji Addy 27.5 1.1 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes. The bike weighs approximately 13,43 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Oval Concepts 620, ergo shape, single lock on, single density Kraton
|
|---|---|
|
Pedals
|
Alloy platform
|
|
Steam
|
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
|
|---|---|
|
Saddle
|
Oval Concepts 438 Women's, steel rail
|
|
Headset
|
FSA NO.10 1 1/8" semi-integrated, caged bearings
|
|
Seatpost
|
Oval Concepts 300, 6061 alloy, 30.9mm diameter
|
|
Handlebar
|
Oval Concepts riser bar, 6061 alloy, 15mm rise, 9° sweep, 31.8mm clamp
|
|
Brake lever
|
Shimano M365, hydraulic disc
|
|
Brakes
|
Shimano Altus BR-M365
|
|
Crankset
|
Shimano Deore, 36/26T
|
|---|---|
|
Shifter
|
Shimano Deore, Rapid Fire, 10-speed
|
|
Bottom bracket
|
Shimano, threaded
|
|
Front derailleur
|
Shimano Deore, 34.9mm
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG50-10
HG
|
|
|
|
|
Rear derailleur
|
Shimano Deore XT RD-M781
238 g
SGS
10s
|
|
|
|
|
Frame
|
Fuji A2-SL custom-butted alloy front triangle w/ PowerCurve down tube, Fuji A1-SL alloy rear triangle w/ post disc mount, cold-forged dropout and replaceable hanger
|
|---|---|
|
Front suspension
|
RockShox XC30 TK
Coil
|
|
|
|
|
Rims
|
Vera Terra DPD22 rims 32h, Shimano HB-TX505 front, Shimano FH-TX50 rear disc hub, 14g stainless black spokes
|
|---|---|
|
Tires
|
Schwalbe Smart Sam, 27.5" x 2.1", 50tpi
|
Geometry
| Size | 13" | 15" | 17" | 19" |
|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
350,0
|
430,0
|
483,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
548,0
|
568,0
|
588,0
|
618,0
|
|
d
Head tube length
|
95,0
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
85,0
|
91,0
|
88,0
|
85,0
|
|
h
Wheelbase
|
1038,4
|
1058,9
|
1079,5
|
1110,0
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
586,9
|
615,0
|
615,0
|
615,0
|
|
l
Reach
|
368,1
|
385,2
|
402,3
|
429,5
|
|
m
Standover height
|
600,5
|
619,1
|
688,3
|
713,4
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
614,0
|
635,0
|
655,0
|
686,0
|
