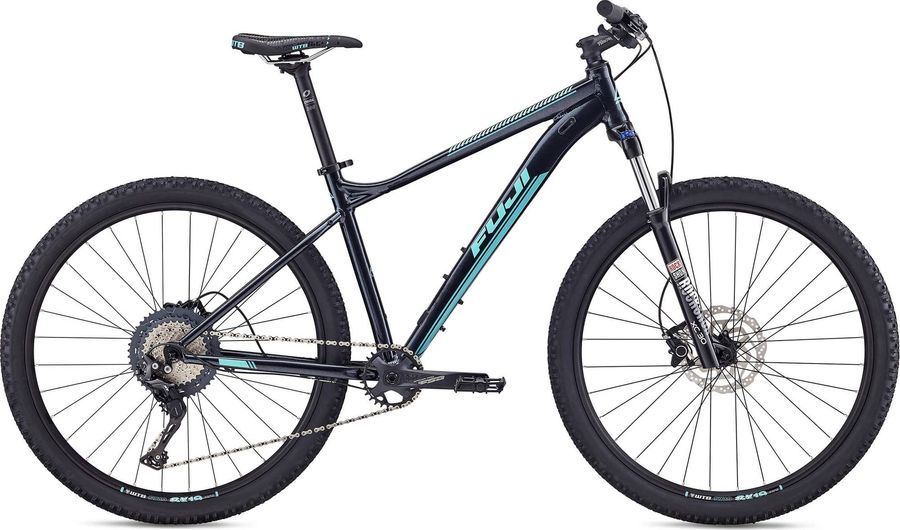

Fuji Addy 27.5 1.1 2020
The Fuji Addy 27.5 1.1 2020 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
About the Fuji Addy 27.5 1.1 2020
The Fuji Addy 27.5 1.1 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Fuji Performance Grip Lock On
|
|---|---|
|
Pedals
|
Alloy platform
|
|
Steam
|
Oval Concepts 313, alloy, +/-7°
|
|---|---|
|
Saddle
|
WTB Koda Comp
|
|
Headset
|
1 1/8" cartridge bearings
|
|
Seatpost
|
Oval Concepts 300, alloy, 30.9mm
|
|
Handlebar
|
Oval Concepts riser bar, alloy, 15mm rise
|
|
Brake lever
|
Shimano MT400
|
|
Brakes
|
Shimano BR-MT400
Hydraulic disc brake
2 piston
|
|
BL-MT401 BL-MT402-3A SM-RT54* SM-RT56* |
|
|
Crankset
|
FSA Gamma Pro, 30T
|
|---|---|
|
Shifter
|
Shimano SLX Ispec, Rapid Fire, 1 x 11-speed
|
|
Bottom bracket
|
FSA Mega EXO, threaded
|
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
|
Rear derailleur
|
Shimano XTR RD-M9000-SGS
224 g
SGS
11s
|
|
42T(2x11-speed), 46T(1x11-speed) |
|
|
Chain
|
KMC X11
|
|
Frame
|
Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle
|
|---|---|
|
Front suspension
|
RockShox XC30 TK
Coil
|
|
|
|
|
Rims
|
WTB SX19 rims 32H, Shimano HB-TX505 front, FH-TX505 rear hub, stainless black spokes
|
|---|---|
|
Tires
|
WTB Ranger Comp, 27.5" x 2.25", 27tpi
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
350,0
|
430,0
|
483,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
548,0
|
568,0
|
588,0
|
618,0
|
|
d
Head tube length
|
95,0
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
85,0
|
91,0
|
88,0
|
85,0
|
|
h
Wheelbase
|
1038,4
|
1058,9
|
1079,5
|
1110,0
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
586,9
|
615,0
|
615,0
|
615,0
|
|
l
Reach
|
368,1
|
385,2
|
402,3
|
429,5
|
|
m
Standover height
|
600,5
|
619,1
|
688,3
|
713,4
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
614,0
|
635,0
|
655,0
|
686,0
|
